PANNEAU DE BRASSAGE INTRACOM CAT6 48 PORTS, 1U
Stock: 0 units
Description
Description
Product overview

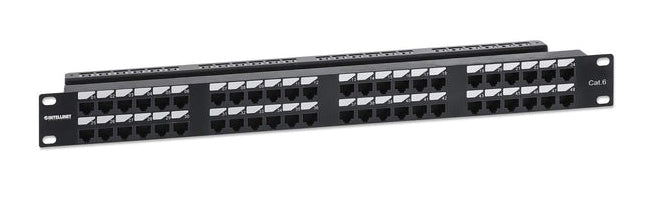

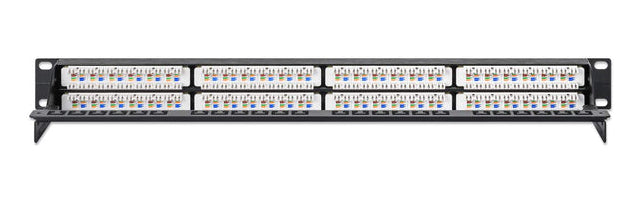

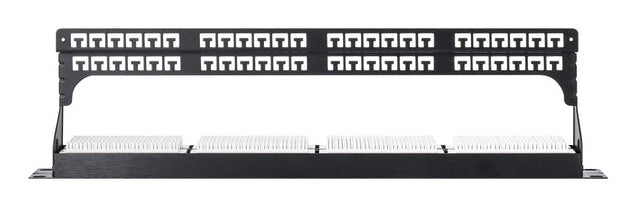

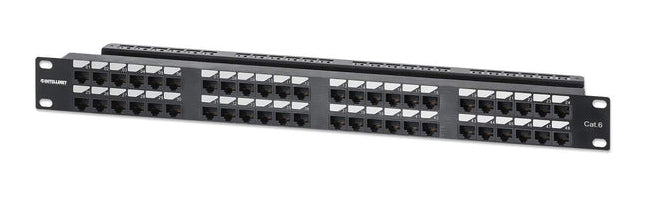

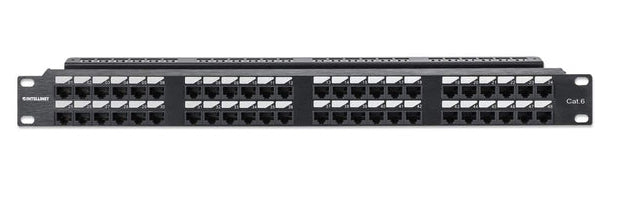

19-inch Rackmount Panel for High-density Installations, UTP, 180° Entry Punch-Down Blocks, for Solid Wire, Gold-plated Contacts, Aluminum, Black. 48-Port Cat6 UTP 1U Cat6 RJ45 Ethernet Patch Panel - Maximize Connectivity in Minimal Space. With its slim 1U installation height, this rack-mount patch panel from Intellinet Network Solutions combines solid and reliable terminations with a space-saving form factor. The numbered and labeled RJ45 ports allow for easy identification and organization of copper cables. A removable cable-management bar ensures a tidy installation, minimizing clutter and simplifying maintenance. IEC 60297 / EIA 310-compliant and compatible with all standard 19 in. / 482.6 mm racks, our patch panel is designed to seamlessly integrate into your existing network setup. High-Quality Construction with UL 94 V-0 Flame Retardant Rating. Crafted with quality materials, this panel features 50 micro-inch gold-plated contacts, supporting 23 to 26 AWG solid wire. The anodized aluminum frame and cold-rolled SPCC steel bracket with antistatic powder coating ensure durability and reliability. It is ideal for advanced applications like HDBaseT and PoE up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. Enhancing safety measures, it has a flame-retardant rating in accordance with UL 94 V-0 and FR-4 standards, providing an extra layer of protection against fire hazards.
Why choose the Intellinet 721066 patch panel 1U?
The Intellinet 721066 patch panel 1U is a patch panels from Intellinet, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Networking standards: IEEE 802.3bt; Ethernet interface type: 10 Gigabit Ethernet; Maximum data transfer rate: 10000 Mbit/s. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Networking standards | IEEE 802.3bt |
| Ethernet interface type | 10 Gigabit Ethernet |
| Maximum data transfer rate | 10000 Mbit/s |
| Ports quantity | 48 |
| Connector(s) | RJ-45 |
| Connector contacts plating | Gold |
| Cable types supported | Cat6 |
| Cable shielding | U/UTP (UTP) |
| AWG wire size | 23/26 |
| Product colour | Black |
| Material | Aluminium, Steel |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Cable management | Yes |
| Input voltage | 1000/750 V |
| Power over Ethernet (PoE) | Yes |
| Compliance certificates | CE, REACH, RoHS, UKCA, UL |
| Certification | ANSI/TIA-568-D |
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Doesn't contain | Cadmium, Lead, Mercury |
| Width | 482.6 mm |
| Height | 44.4 mm |
| Depth | 127 mm |
| Weight | 760 g |
| Quick start guide | Yes |
| Cable tie(s) included | Yes |
| Number of cable ties | 48 |
| Package weight | 870 g |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Brand | Intellinet |
| Manufacturer part number | 721066 |
| GTIN / UPC | ['0766623721066', '766623721066'] |
