Support mural vertical INTRACOM pour équipement 19 pouces, 4U
Stock: 0 units
Description
Description
Product overview

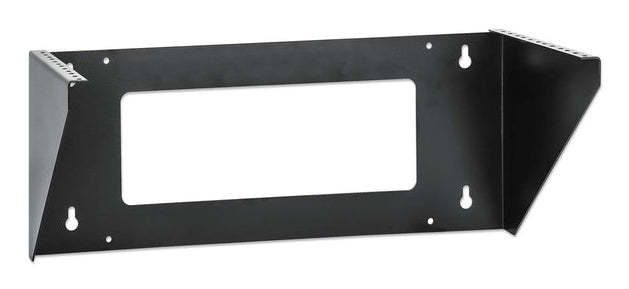

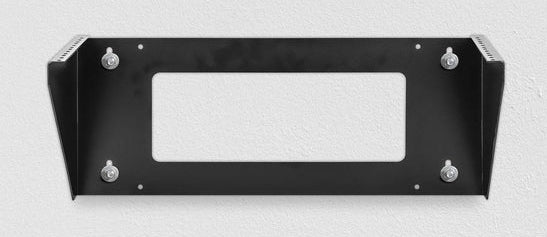

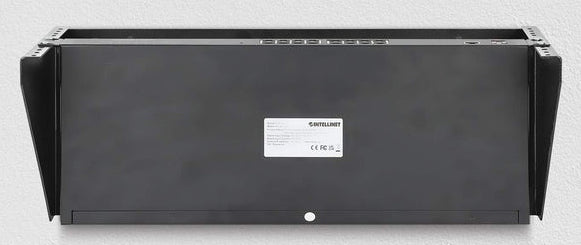

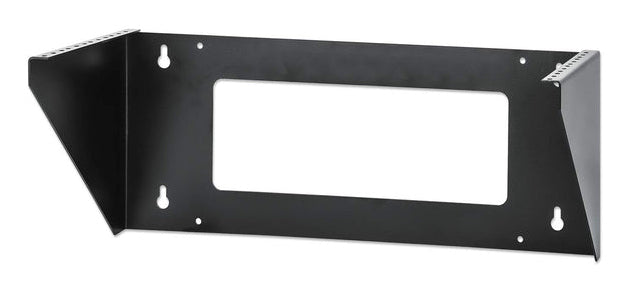

4U Vertical Wall Mount Rack Bracket for 19in. for Network and Server Equipment. This 19" Vertical Wall Mount Rack Bracket offers a reliable rackmount solution for IT and AV equipment in home offices and small businesses where space limitations prevent conventional racking. Mount your network equipment, such as PDUs, switches, and patch panels, with a smaller footprint by hanging it flush against the wall. Alternatively, you can install it horizontally beneath a desk, providing convenient access to the installed equipment directly from your workspace. Constructed with a heavy-duty cold-rolled sturdy steel adhering to EIA-310 19in rack standards, this wall-mount bracket is perfect for environments lacking the footprint space for a full-size server equipment rack. Wall-mounting holes spaced 16 inches apart match standard wall-stud placement. The bracket supports equipment up to a maximum weight of 135 lbs. (61 kg) with good airflow through its open design.
Why choose the Intellinet 716369 rack accessory Mounting bracket?
The Intellinet 716369 rack accessory Mounting bracket is a rack accessories from Intellinet, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Type: Mounting bracket; Product colour: Black; Housing material: Steel. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Conference and boardroom installs
- Classroom and training rooms
- Retail and hospitality displays
- Workstation ergonomics programs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Type | Mounting bracket |
| Product colour | Black |
| Housing material | Steel |
| Maximum weight capacity | 61 kg |
| Rack capacity | 4U |
| Wall mountable | Yes |
| Mounting hole shape | Rectangular |
| Certification | ANSI/EIA 310-E IEC 60297-3 |
| Size (imperial) | 48.3 cm (19") " |
| Width | 487 mm |
| Depth | 195 mm |
| Height | 195 mm |
| Material thickness | 2 mm |
| Weight | 1.75 kg |
| Quantity per pack | 1 pc(s) |
| Package weight | 2.61 kg |
| Mounting kit | Yes |
| Screws included | Yes |
| Screw type | #10-12 x 1/2" flat head |
| Number of screws | 12 |
| Doesn't contain | Cadmium, Lead, Mercury |
| Warranty period | 3 year(s) |
| Compliance certificates | RoHS |
| Brand | Intellinet |
| Manufacturer part number | 716369 |
| GTIN / UPC | ['0766623716369', '766623716369'] |
