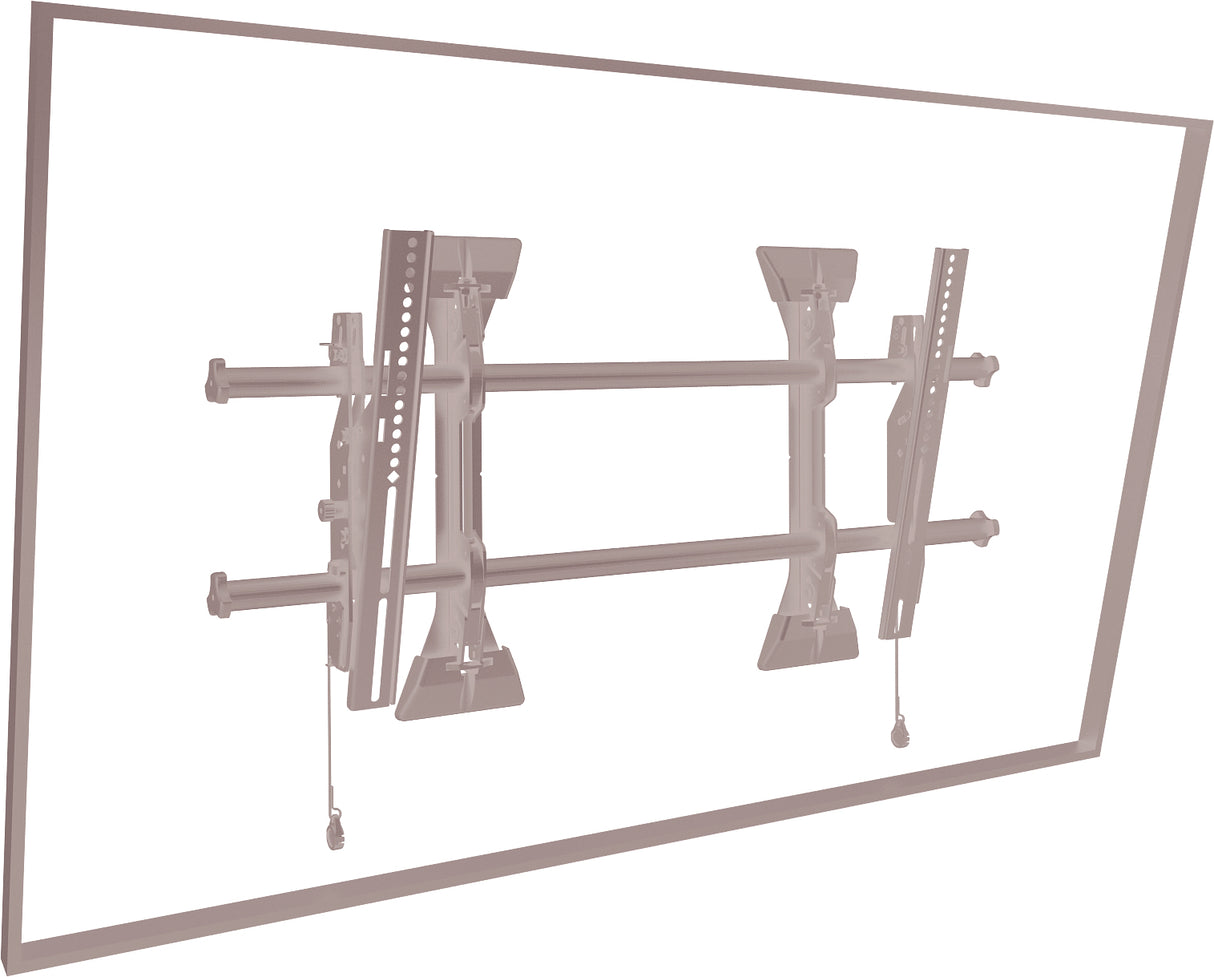

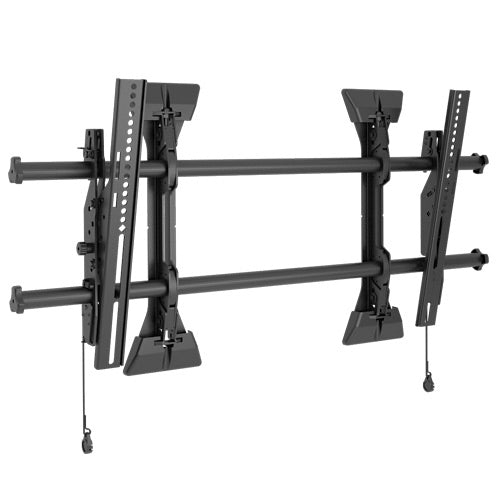

Chief Large Fusion® Micro-Adjustable Tilt Wall Mount
Stock: 14 units
Chief Large Fusion® Micro-Adjustable Tilt Wall Mount
Description
Description
Product overview
Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security. Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution. - Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall - Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering - Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile - Set screws keep the mount rigid, stable and secure throughout the life of the installation - ClickConnect offers an audible click when the screen safely engages with the mount - Built-in cable stand provides easy access under the screen - A full line of accessories can be installed with the mount and the entire unit can be adjusted together - Multiple installation options for various stud distances - Exclusive nesting spacers can be stacked to achieve any depth - Quick-Store Cords use magnets to easily store and access pull cords - Improved cable management with new end caps - Integrated Security - Ships with a custom hardware kit that can be hung from mount...
Why choose the Chief Large Fusion® Micro-Adjustable Tilt Wall Mount?
The Chief Large Fusion® Micro-Adjustable Tilt Wall Mount is a tv mounts & stands from Chief, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Maximum weight capacity: 90.7 kg; Minimum screen size: 94 cm (37") "; Number of displays supported: 1. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Workstations and open-plan offices
- Meeting rooms and huddle spaces
- Digital signage and reception areas
- Control rooms and monitoring desks
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Maximum weight capacity | 90.7 kg |
| Minimum screen size | 94 cm (37") " |
| Number of displays supported | 1 |
| Maximum screen size | 165.1 cm (65") " |
| Suitable for computer monitor | Yes |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,700 x 400,800 x 400 mm |
| Mounting type | Wall |
| Height adjustment | Yes |
| Tilt angle range | -2 - 12° |
| Cable management | Yes |
| Maximum distance to floor | 5.1 cm mm |
| Maximum distance to ceiling | 5.1 cm mm |
| Distance to the wall (max) | 5.1 cm mm |
| Distance to the wall (min) | 5.1 cm mm |
| Product colour | Black |
| Housing material | Steel |
| Certification | UL |
| Mounting kit | Yes |
| Width | 882 mm |
| Depth | 51 mm |
| Height | 432 mm |
| Weight | 9.98 kg |
| Package weight | 10 kg |
| Harmonized System (HS) code | 85299097 |
| Brand | Chief |
| Manufacturer part number | LTM1U |
| GTIN / UPC | ['0841872163277', '841872163277'] |
Frequently asked questions
How long does delivery take?
Orders are processed within 24 hours. Once your tracking number is issued, delivery takes 24 to 72 hours to major centres in the main provinces, and 3 to 8 business days to remote regions. We ship with FedEx, DHL, UPS, Canada Post and Purolator.
Is this product covered by a warranty?
Yes. This item carries the manufacturer's warranty. See our Refund Policy for return windows and conditions, or contact us and we will walk you through the process.
Can I get volume pricing?
Yes. Volume discounts apply automatically as quantity increases, and our team can quote larger projects directly — reach us by phone, WhatsApp or email.
Do the specifications on this page come from the manufacturer?
They do. Product data on this page is sourced from the manufacturer's own catalogue, not rewritten from a distributor summary.
