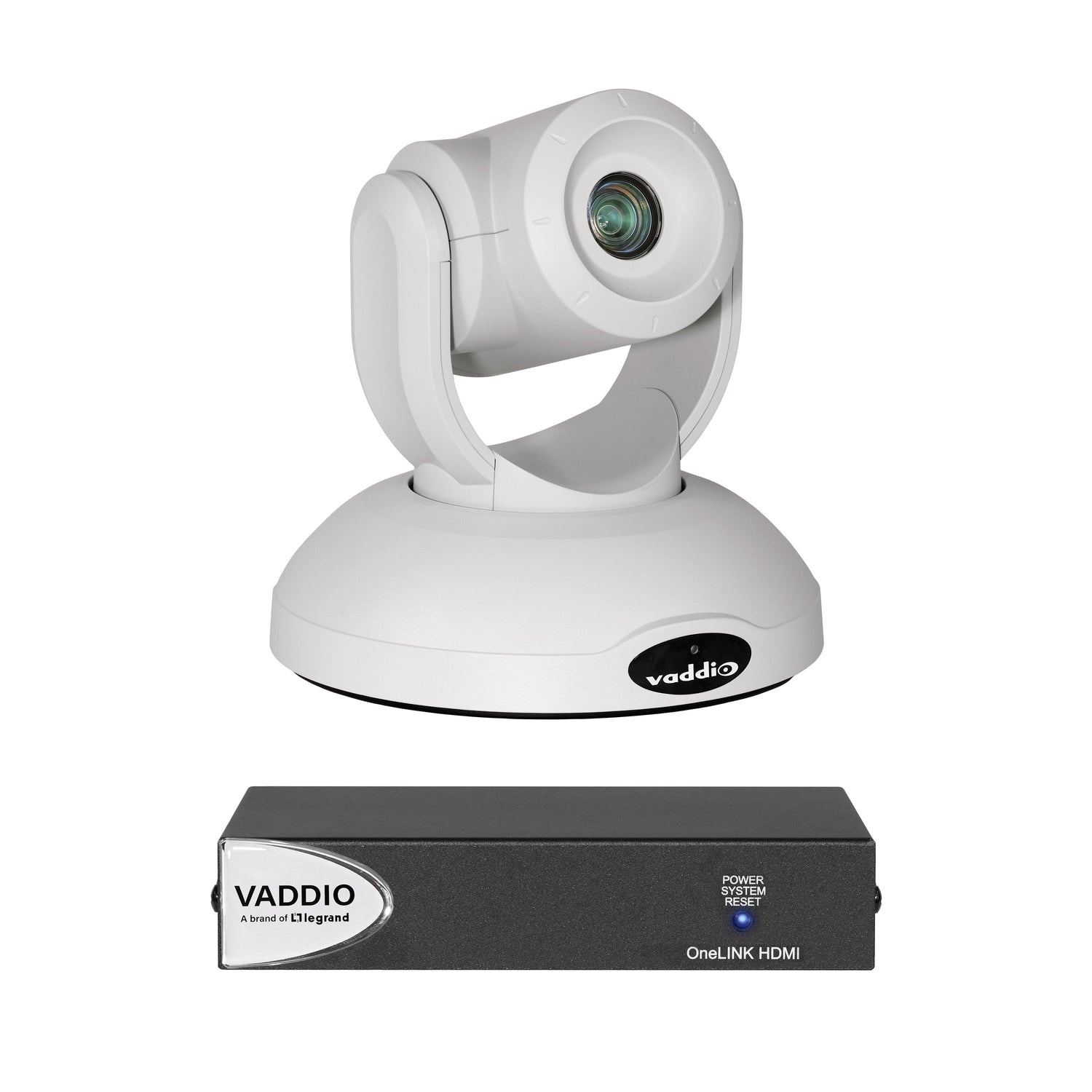

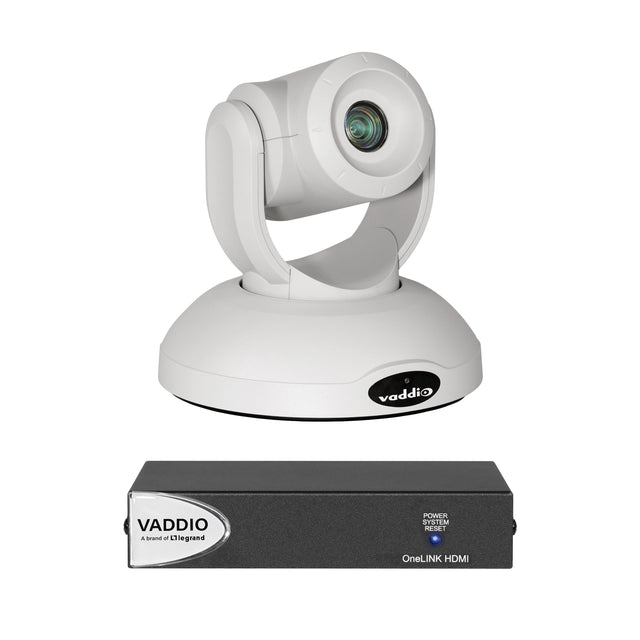

LEGRAND-VADDIO ROBOSHOT 20 UHD ONELINK HDMI SYS-WHT N/A
Stock: 0 units
Description
Description
Product overview

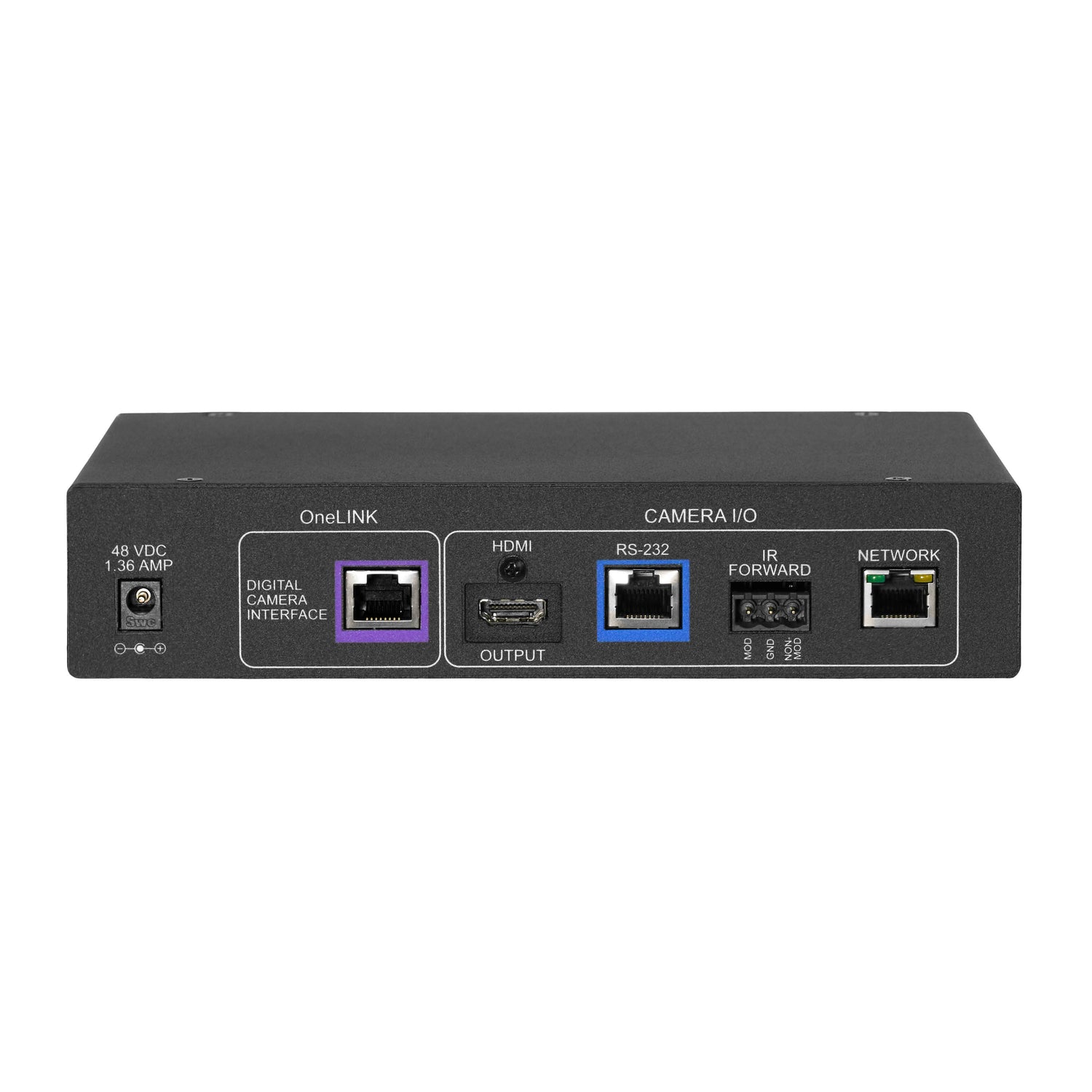

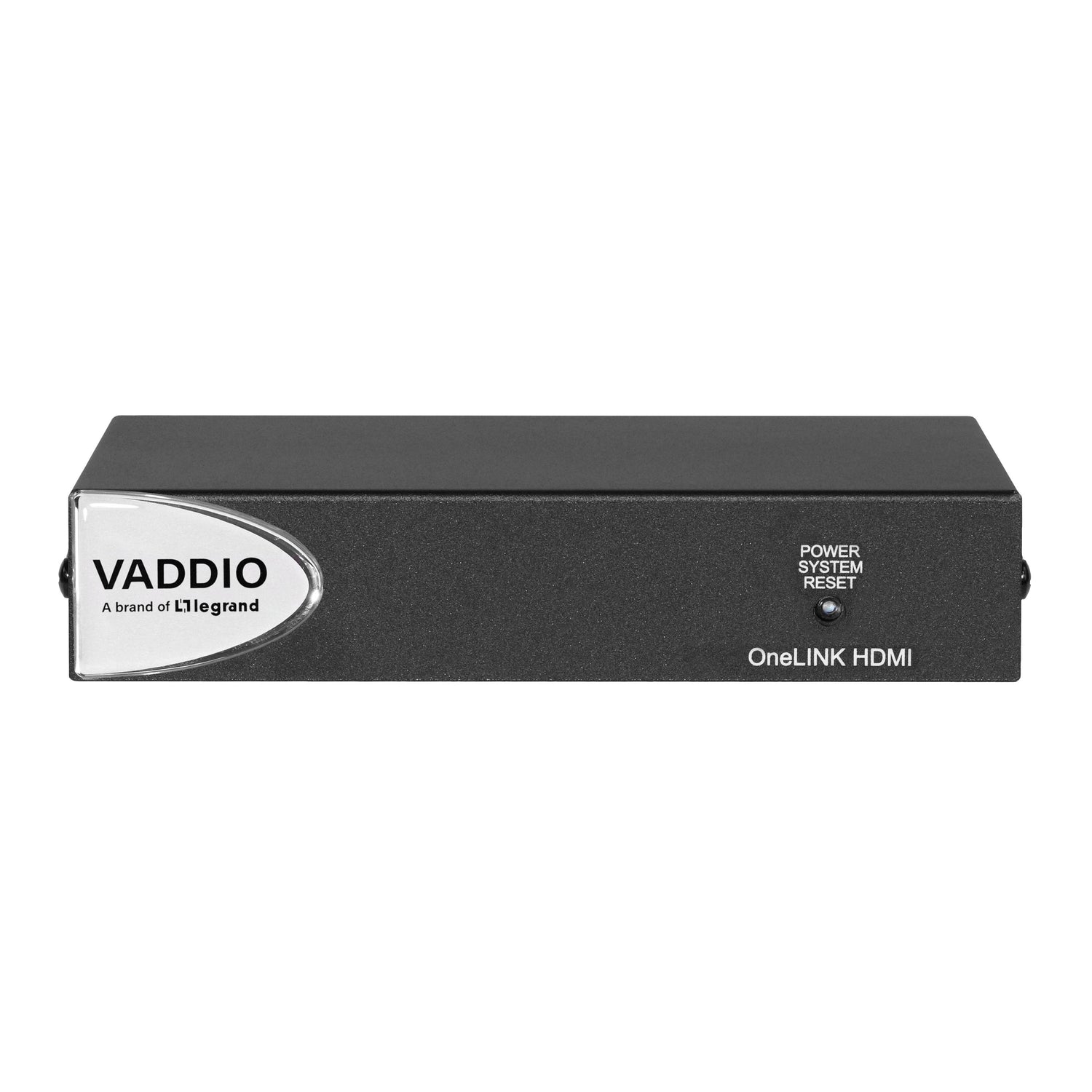

This system combines the RoboSHOT 20 UHD camera with the OneLINK HDMI Receiver for HDBaseT Cameras to extend power, video and control over a single cable for simple, tidy installation. Production-quality RoboSHOT 20 UHD provides brilliant 4K video footage for broadcasting or live streaming applications. Ultra HD (4K) PTZ camera with pristine image quality and outstanding low-light performance. Enterprise-class features include administrative control and remote operation via web interface and IP streaming. Designed for use in medium to large spaces this powerful UHD camera is perfect for higher education classrooms, corporate broadcasting and houses of worship. Total zoom range of 20x: 12x optical zoom lens with seamless transition to 1.67x digital zoom. 1/2.3-type, high-speed, low noise, back-illuminated CMOS sensor with 9.03 total megapixels yields native UHD 2160p/30 (3840 x 2160) video images without scaling. With a 74-degree wide horizontal field of view and built in CCU with browser configuration, the RoboSHOT 20 UHD provides great flexibility in a variety of applications including video production, live events, lecture capture, and conferencing. The system's OneLINK HDMI Receiver for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6 cable.
Why choose the Vaddio RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System?
The Vaddio RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System is a video conferencing systems from Vaddio, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Product colour: White; Product type: Conferencing system set; Pan range: -160 - 160°. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Shared office and workgroup printing
- Front-desk and retail counters
- Warehouse labelling and logistics
- High-volume document production
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Product colour | White |
| Product type | Conferencing system set |
| Pan range | -160 - 160° |
| Pan speed range | 0.35 - 120 °/sec |
| Tilt angle range | 90 - -30° |
| Tilt speed range | 0.35 - 120 °/sec |
| PTZ control | Yes |
| HD type | 2K Ultra HD |
| Total megapixels | 8.93 MP |
| Supported video modes | 2160p |
| HDMI output ports quantity | 1 |
| 3G-SDI output | Yes |
| RS-232 ports | 1 |
| Megapixel (approx.) | 9.03 MP |
| Zoom capability | Yes |
| Optical zoom | 20x |
| Sensor type | CMOS |
| Image sensor size | 1/2.3" |
| Field of view (FOV) angle | 70° |
| Field of view (wide) | 74° |
| Field of view (tele) | 4.8° |
| Noise reduction number of steps | 6 |
| Focus adjustment | Auto/Manual |
| PTZ motors | Silent BLDC Direct Drive Motors |
| Minimum illumination | 3 lx |
| White balance | Auto, Manual, One push |
| Gain control type | Auto/Manual |
| Invertible | Yes |
| Tri-Synchronous Motion Technology | Yes |
| Control method | RS-232, IR remote, Joystick, Web UI |
| OneLink compatibility | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Current | 1.36 A |
| DC input voltage | 48 V |
| Compliance certificates | Trade Agreements Act (TAA) |
| Camera dimensions (WxDxH) | 203 x 196 x 200 mm |
| Camera weight | 2.7 kg |
| Receiver dimensions (WxDxH) | 213 x 152 x 43.7 mm |
| Headset weight | 700 g |
| Package weight | 6.8 kg |
| Brand | Vaddio |
| Manufacturer part number | 999-9950-100W |
| GTIN / UPC | ['0840077503819', '840077503819'] |
