QNAP 16 BAIES 3U MONTAGE EN RACK SAS 12 GB/S JBOD DOUBLE CONTRÔLEUR BOÎTIER D'EXTENSION AVE
Stock: 0 units
Description
Description

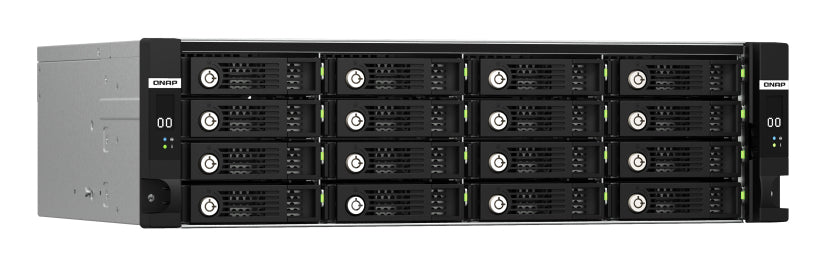

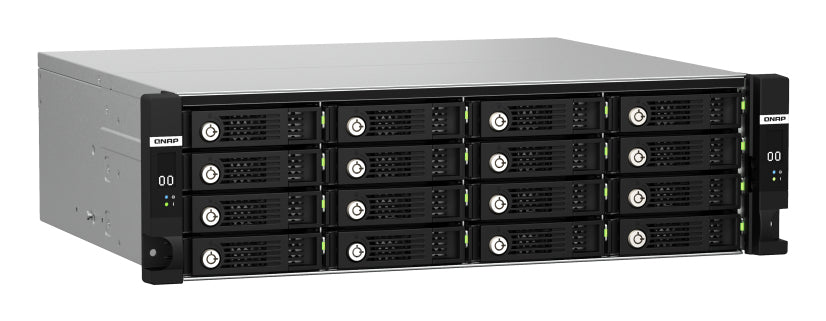

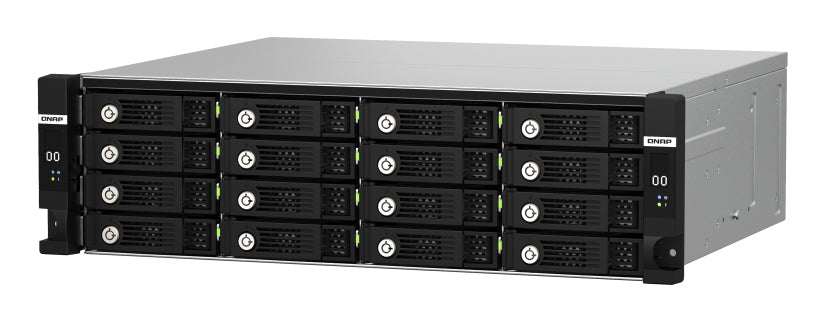

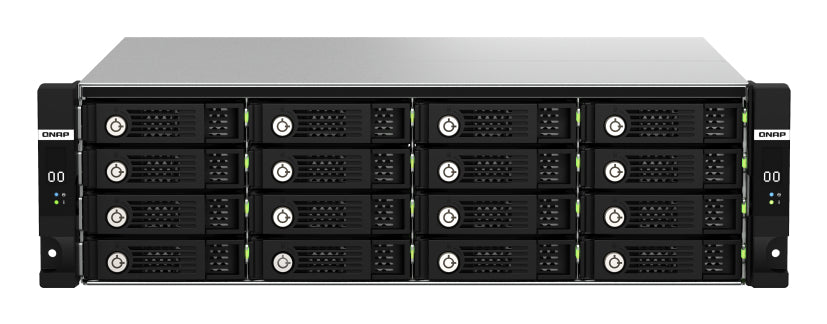

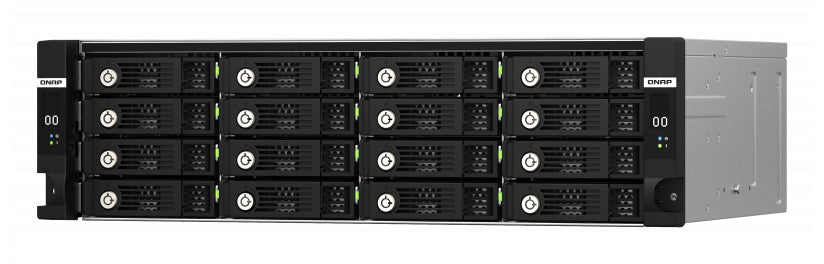

Product overview
Featuring dual controllers, an OLED indicator, and a short-depth rackmount design, the 3U 16-bay TL-R1620Sdc SAS 12Gb/s storage expansion enclosure is ideal for expanding the storage capacity of dual-controller QNAP NAS. Both controllers have three Mini-SAS HD (SFF-8644) ports, supporting 12Gbps SAS and Broadcom® SAS DataBolt™ bandwidth optimization technology. The dual path mini-SAS design sustains continuous operations even if an external JBOD cable is disconnected. Up to 7 TL-R1620Sdc units can be daisy-chained via high-speed Mini-SAS HD cables, providing scalability and high reliability for mission-critical storage of file servers, virtualization, surveillance, medium-sized data center, multimedia, and more. Failure-resistant with a dual-controller, dual-path design. Connect the TL-R1620Sdc to a dual-controller QNAP NAS and create a redundant cross loop configuration that provides expansion units with redundant paths to the base NAS and protection between JBOD connections. If one or more paths to the TL-R1620Sdc disconnect, other expansion units can still communicate with the base NAS. This is essential for intermachine data protection and capacity scalability for uninterrupted mission-critical enterprise tasks. Connect up to 7 expansion units for petabyte-level storage capacity. The base NAS requires QES 2.1.1 (or later) and either Mini-SAS HD (SAS 12Gb/s SFF-8644), Mini-SAS (SAS 6Gb/s SFF-8088) ports or a PCIe-based SAS expansion card. Highly efficient, reliable and scalable. The TL-R1620Sdc is powered by a low-power 28nm SAS35x28R SAS Expander and supports 12/6 Gb/s...
Why choose the QNAP TL-R1620Sdc HDD/SSD enclosure Black 2.5/3.5"?
The QNAP TL-R1620Sdc HDD/SSD enclosure Black 2.5/3.5" is a storage drive enclosures from QNAP, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Number of storage drives supported: 16; Storage drive size: 2.5/3.5"; Supported storage drive interfaces: SAS-2, SAS-3. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Backups and archiving
- Workstation performance upgrades
- Media and creative workflows
- Server and NAS capacity expansion
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Number of storage drives supported | 16 |
| Storage drive size | 2.5/3.5" |
| Supported storage drive interfaces | SAS-2, SAS-3 |
| RAID levels | JBOD |
| Hot-swap | Yes |
| Product type | HDD/SSD enclosure |
| Product colour | Black |
| LED indicators | Yes |
| On/off switch | Yes |
| Rack mounting | Yes |
| Rack capacity | 3U |
| Number of fans | 3 fan(s) |
| Fan diameter | 8 cm mm |
| Data transfer rate | 12 Gbit/s |
| Power source type | AC |
| AC adapter input voltage | 100-240 V |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 482.2 mm |
| Depth | 425.3 mm |
| Height | 131.3 mm |
| Weight | 13.9 kg |
| Package width | 595 mm |
| Package depth | 593 mm |
| Package height | 305 mm |
| Package type | Box |
| Cables included | AC, MiniSAS |
| Screws included | Yes |
| Manual | Yes |
| Warranty period | 5 year(s) |
| Harmonized System (HS) code | 84733080 |
| Brand | QNAP |
| Manufacturer part number | TL-R1620SDC |
| GTIN / UPC | ['4713213519240', '0885022021444', '885022021444'] |
Frequently asked questions
How long does delivery take?
Orders are processed within 24 hours. Once your tracking number is issued, delivery takes 24 to 72 hours to major centres in the main provinces, and 3 to 8 business days to remote regions. We ship with FedEx, DHL, UPS, Canada Post and Purolator.
Is this product covered by a warranty?
Yes. This item carries the manufacturer's warranty. See our Refund Policy for return windows and conditions, or contact us and we will walk you through the process.
Can I get volume pricing?
Yes. Volume discounts apply automatically as quantity increases, and our team can quote larger projects directly — reach us by phone, WhatsApp or email.
Do the specifications on this page come from the manufacturer?
They do. Product data on this page is sourced from the manufacturer's own catalogue, not rewritten from a distributor summary.
