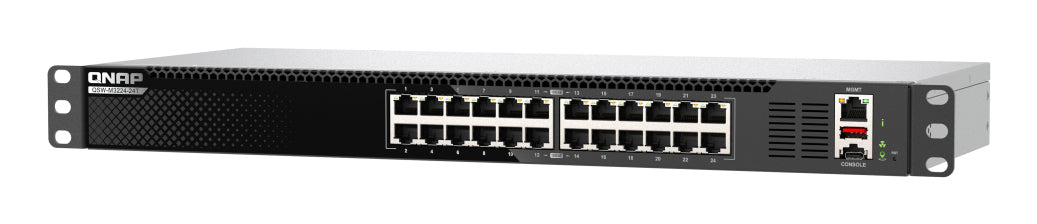

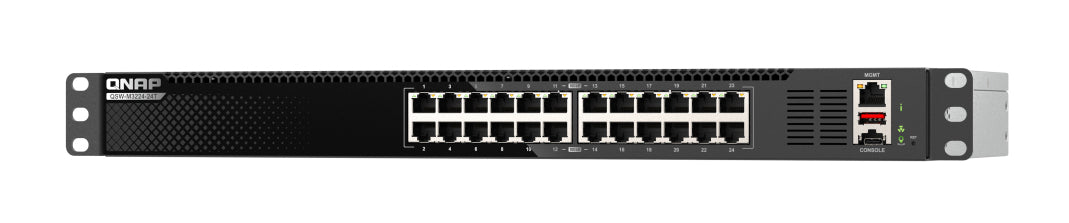

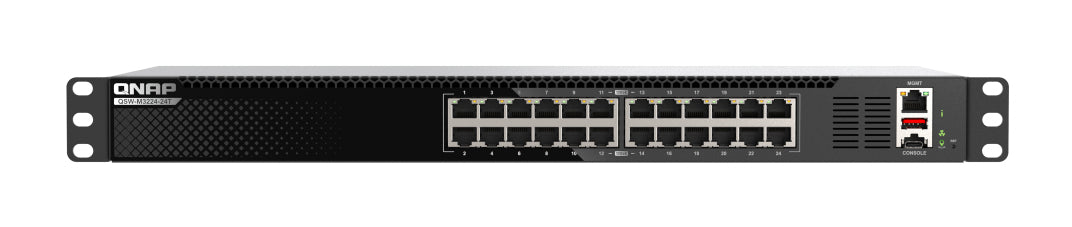

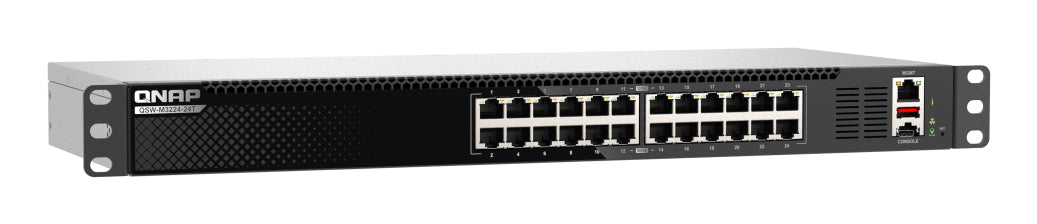

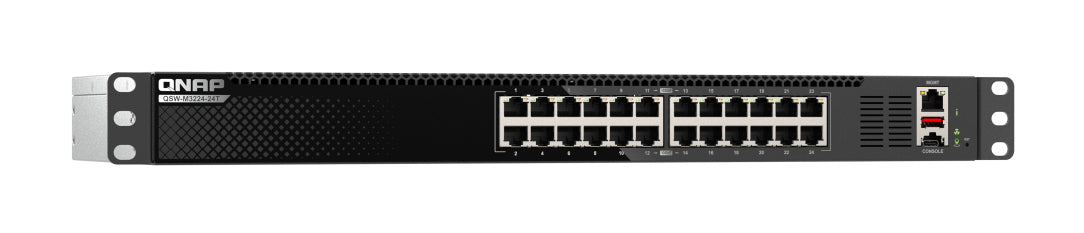

QNAP RACKMOUNT SWITCH QSW-M3224-24T-US, COMMUTATEUR GÉRÉ LAYER 3 LITE 24 PORTS, 24
Stock: 0 units
Description
Description
Product overview
QSW-M3224-24T. Cost-optimized high-density 1U Rackmount 24-port 10GbE Multi-gigabit L3 Lite managed switch, supporting MC-LAG for realizing IT room High Availability. QSW-M3224-24T is a cost-effective L3 Lite managed switch designed for enterprises. With twenty four 10GbE Multi-Gig ports for low-latency and high-density 10G network applications, QSW-M3224-24T accelerates high-speed storage, video editing, virtualization, AI and AVoIP applications. The QSW-M3224-24T is made in Taiwan (MIT), providing a high-quality and reliable networking solution. Scale secure and highly-efficient enterprise network infrastructure with the QNAP L3 Lite switch. Medium to large-scale enterprises often have large and complicated network infrastructure. Upgrading to L3 Lite managed switches not only scales a secure high-speed network infrastructure, but also saves tremendous maintenance and management costs. 24x 10GbE ports for connecting more high-speed network devices. The switching capacity of the QSW-M3224-24T is 480Gbps, guaranteeing the full potential of each port. The QSW-M3224-24T can uplink to switches and servers in server rooms or connect to 10GbE NAS, workstations, AV-over-IP devices, and SNMP-compliant devices to build a flexible high-speed network transmission topology. Optimize network performance with bandwidth and packet control. The QSW-M3224-24T offers practical bandwidth and packet control features that effectively allocate bandwidth and manage network segmentation. This significantly enhances network performance for administrators. Powerful security and system functions...
Why choose the QNAP QSW-M3224-24T network switch Managed L3 10G Ethernet...?
The QNAP QSW-M3224-24T network switch Managed L3 10G Ethernet... is a network switches from QNAP, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Switch type: Managed; Switch layer: L3; Quality of Service (QoS) support: Yes. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Number of management ports | 1 pc(s) |
| Console port | RJ-45 |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Switching capacity | 480 Gbit/s |
| Throughput | 240 Gbit/s |
| MAC address table | 32000 entries |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black, Silver |
| Reset button | Yes |
| LED indicators | Yes |
| Firmware upgradeable | Yes |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 116.9 W |
| Warranty period | 2 year(s) |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 438.5 mm |
| Depth | 190 mm |
| Brand | QNAP |
| Manufacturer part number | QSW-M3224-24T |
| GTIN / UPC | ['4711103085363', '0885022027712', '885022027712'] |
Frequently asked questions
How long does delivery take?
Orders are processed within 24 hours. Once your tracking number is issued, delivery takes 24 to 72 hours to major centres in the main provinces, and 3 to 8 business days to remote regions. We ship with FedEx, DHL, UPS, Canada Post and Purolator.
Is this product covered by a warranty?
Yes. This item carries the manufacturer's warranty. See our Refund Policy for return windows and conditions, or contact us and we will walk you through the process.
Can I get volume pricing?
Yes. Volume discounts apply automatically as quantity increases, and our team can quote larger projects directly — reach us by phone, WhatsApp or email.
Do the specifications on this page come from the manufacturer?
They do. Product data on this page is sourced from the manufacturer's own catalogue, not rewritten from a distributor summary.
