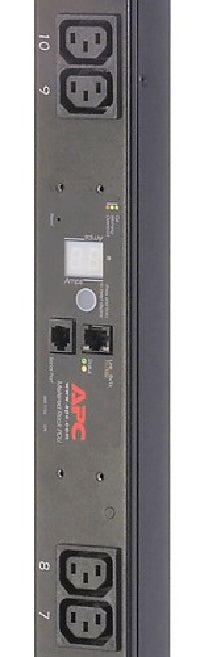

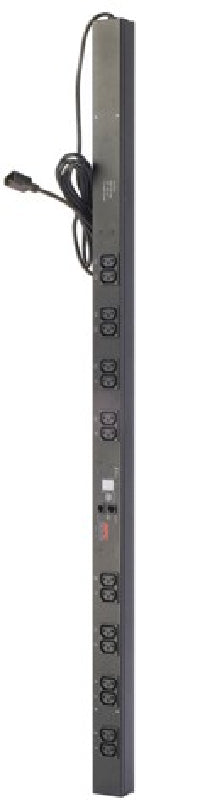

SCHNEIDER ELECTRIC AP7850B - Unité de distribution d'alimentation - Montable sur rack - Entrée V
Stock: 0 units
Description
Description
Product overview
Toolless Rack Mounting Capabilities. Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure. Vertical Mounting Capabilities. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures. Wide range of input and output connections. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip. Single input power source. Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections. Rack-Mountable. Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment. Integrates with StruxureWare Data Center Expert. An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network. Load indicator LED. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded...
Why choose the APC AP7850B power distribution unit (PDU) 16 AC outlet(s)...?
The APC AP7850B power distribution unit (PDU) 16 AC outlet(s) 0U Black is a power distribution units (pdus) from APC, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — PDU types: Metered; Rack capacity: 0U; Mounting: Vertical. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Workstation and mobile device charging
- Point-of-sale and kiosk equipment
- Network closets and edge devices
- Field and remote work kits
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| PDU types | Metered |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 16 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| LED indicators | Yes |
| Cable length | 3.05 m |
| Monitoring | Current, Power, Voltage |
| Nominal input voltage | 200-250 V |
| AC input frequency | 47/63 Hz |
| Maximum current | 10 A |
| Nominal output voltage | 230 V |
| Load capacity | 2300 VA |
| Maximum input current per phase | 10 A |
| Maximum total current draw per phase | 10 A |
| Maximum power | 2300 W |
| Compliance certificates | RoHS |
| Certification | CE, GOST, VDE |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Operating temperature (T-T) | 23 - 113 °F |
| Width | 56 mm |
| Depth | 44 mm |
| Height | 1245 mm |
| Weight | 3.07 kg |
| Package weight | 3.98 kg |
| Package width | 387 mm |
| Package depth | 323 mm |
| Package height | 2134 mm |
| Brand | APC |
| Manufacturer part number | AP7850B |
| GTIN / UPC | ['0731304331537', '731304331537'] |
