SCHNEIDER NETSHELTER RACK PDU ADV COMMUTÉ 5.0KW
Stock: 0 units
Description
Description
Product overview

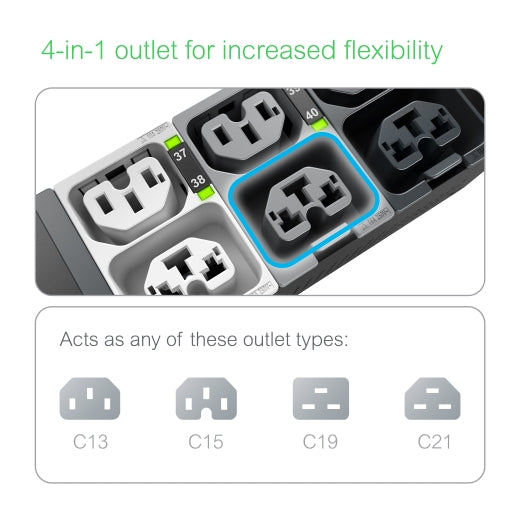

APC NetShelter Rack PDU Advanced, Switched, 5.0kW, 1PH, 208V, 30A, L6-30P, 40 Outlet. APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. Switched outlets to turn outlets on or off remotely. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparreled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded by breaker to simplify deployment. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of...
Why choose the APC NetShelter Rack PDU Advanced power distribution unit...?
The APC NetShelter Rack PDU Advanced power distribution unit (PDU) 40 AC... is a power distribution units (pdus) from APC, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — PDU types: Switched; Type: Single-phase; Form factor: Rackmount. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Conference and boardroom installs
- Classroom and training rooms
- Retail and hospitality displays
- Workstation ergonomics programs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| PDU types | Switched |
| Type | Single-phase |
| Form factor | Rackmount |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LCD |
| On/off switch | Yes |
| Regulatory Approvals | CSA C22.2 No 62368-1, FCC part 15 subpart B, UL 62368-1 |
| AC outlets quantity | 40 AC outlet(s) |
| Power plug | NEMA L6-30P |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Ethernet LAN (RJ-45) ports | 2 |
| USB ports quantity | 1 |
| Daisy chain | Yes |
| Reset button | Yes |
| LED indicators | Activity, Network, Power |
| Colour-coded outlets | Yes |
| Cable length | 3 m |
| Security algorithms | 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3 |
| Password protection | Yes |
| Compatible products | Compatible with most NetShelter SX enclosures and third-party racks |
| Monitoring | Current, Humidity, Power, Temperature, Voltage |
| Outlet control | Lock-out, Recycle, Turn off, Turn on |
| Firmware upgradeable | Yes |
| Firmware upgradeable via | Network, USB |
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 30 A |
| Nominal output voltage | 208 V |
| Load capacity | 4992 VA |
| Number of phases | 1 |
| Maximum total current draw per phase | 24 A |
| Power protection features | Overload |
| Maximum power | 5000 W |
| Surge protection | Yes |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | -5 - 60 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Brand | APC |
| Manufacturer part number | APDU10151SW |
| GTIN / UPC | ['0731304439776', '731304439776'] |
