SHUTTLE SH510R4 XPC CUBE BAREBONES CHIPSET H510, SUPPORT INTEL COMET LAKE/ROCKET
Stock: 0 units
Description
Description
Product overview

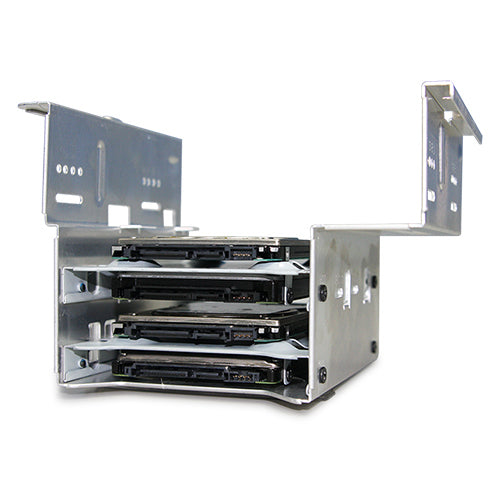

Economical and Capable Workstation - Your Best Choice of Entry-level PC. Shuttle XPC Cube SH510R4 features with new H510 chipset. Supporting Intel 11th gen LGA1200 processor that integrated Intel Xe engine to simultaneously output 4K/60 contents via HDMI 2.0b and DisplayPort1.4. The new processor offers fast and reliable performance for professional users. To fulfill most applications, SH510R4 allows users to install two 3.5” HDD, one ODD bay and a M.2 M key SSD to offer faster storage performance. Thanks to a built-in 80 PLUS power supply and exclusive heat-pipe cooling system, the model is energy-efficient and ready for long-term operation. As desired, the front panel can also be fully customized to your needs. Intel 11th Generation Core processor. Intel 11th Gen processor Rocket Lake-S is equipped with all new 14nm process architecture, integrated GPU and high-speed interface. It strengthens 19% improvement to instructions per clock (IPC). Besides, enhanced Intel UHD graphics featuring Intel Xe graphics architecture delivers 50% better performance than the previous generation-Matching .with SH510R4’s unique design and powerful thermal capability, allowing users to take advantage of their daily work. 4K UHD Experience and Dual Display Productivity. With UHD graphic upgraded, SH510R4 features an HDMI 2.0b, which supports 4k 50/60hz, 18Gbps bandwidth, and with a DisplayPort that overall drives up to two independent displays with 4K UHD resolution. High Storage Capacity with M.2. With native M.2 2280 key M and one M.2 2230 key E slots, the SH510R4 offers considerably faster...
Why choose the Shuttle XPC cube Barebone SH510R4 - S1200, Intel H510...?
The Shuttle XPC cube Barebone SH510R4 - S1200, Intel H510, 1xDP, 1xHDMI... is a pc/workstation barebones from Shuttle, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Number of memory slots: 2; Maximum internal memory: 64 GB; Supported memory clock speeds: 2666,2933,3200 MHz. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Day-to-day office productivity
- Hybrid and remote work
- Field and mobile teams
- Fleet deployments and refresh cycles
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Memory channels | Dual-channel |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 3.5" |
| Storage drive interface | M.2, Serial ATA III |
| Motherboard chipset | Intel H510 |
| Processor socket | LGA 1200 (Socket H5) |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® |
| Audio output channels | 5.1 channels |
| Ethernet LAN | Yes |
| LAN controller | Intel® I219-LM |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of SATA III connectors | 3 |
| PCI Express slots version | 3.0, 4.0 |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| Product colour | Black |
| Product type | Workstation barebone |
| Harmonized System (HS) code | 84713000 |
| Certification | CB , BSMI , cTUVus FCC , CE , BSMI , RCM , VCCI |
| Windows operating systems supported | Windows 10 x64 |
| Linux operating systems supported | Yes |
| Power supply type | Internal power supply unit |
| Power supply | 300 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| Width | 216 mm |
| Depth | 329 mm |
| Height | 198 mm |
| Power cord included | Yes |
| Brand | Shuttle |
| Manufacturer part number | SH510R4 |
| GTIN / UPC | ['0887993003948', '887993003948', '0887993005409', '887993005409'] |
