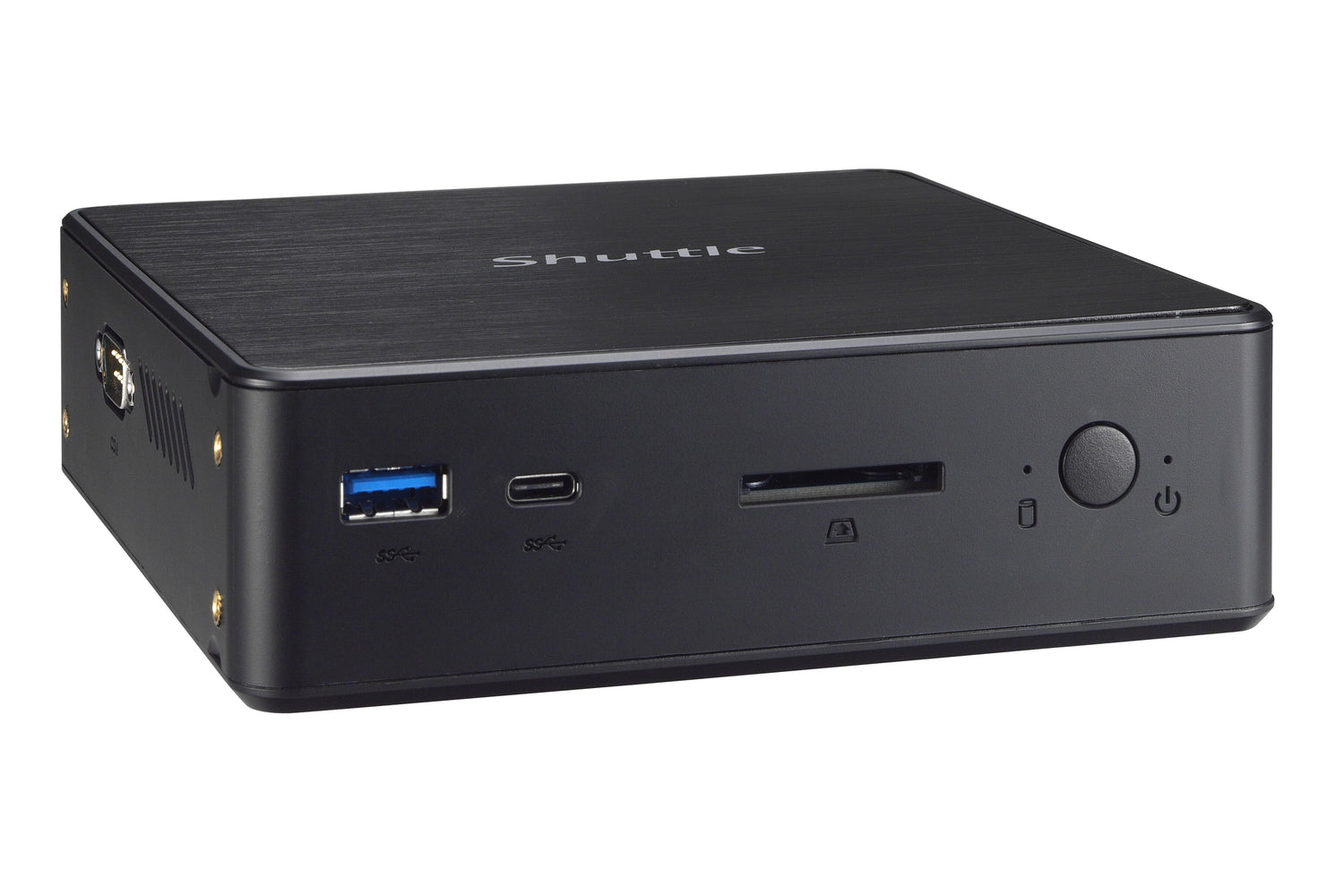

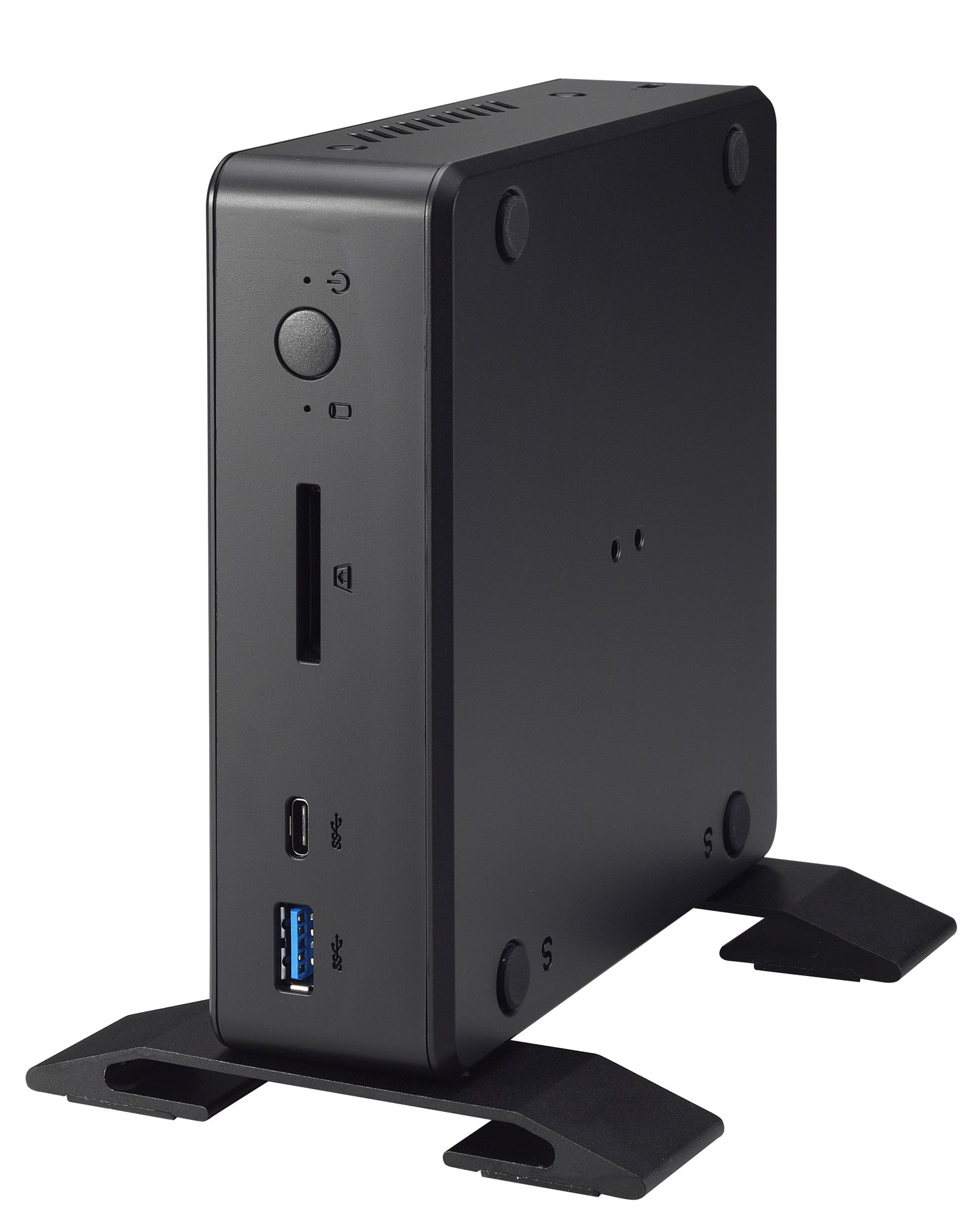

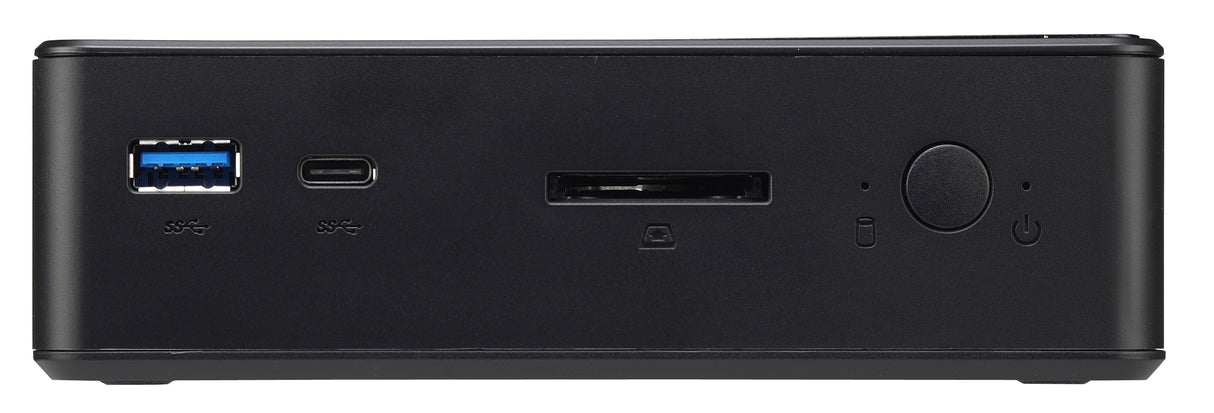

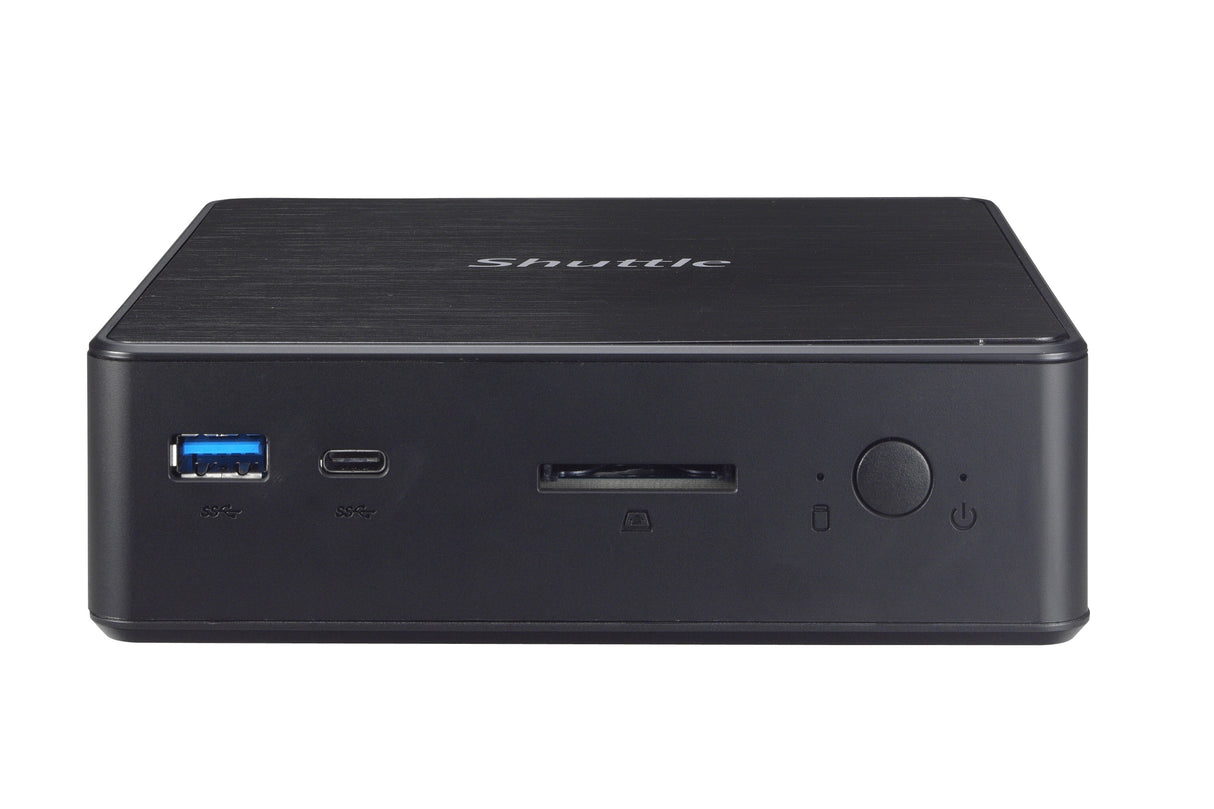

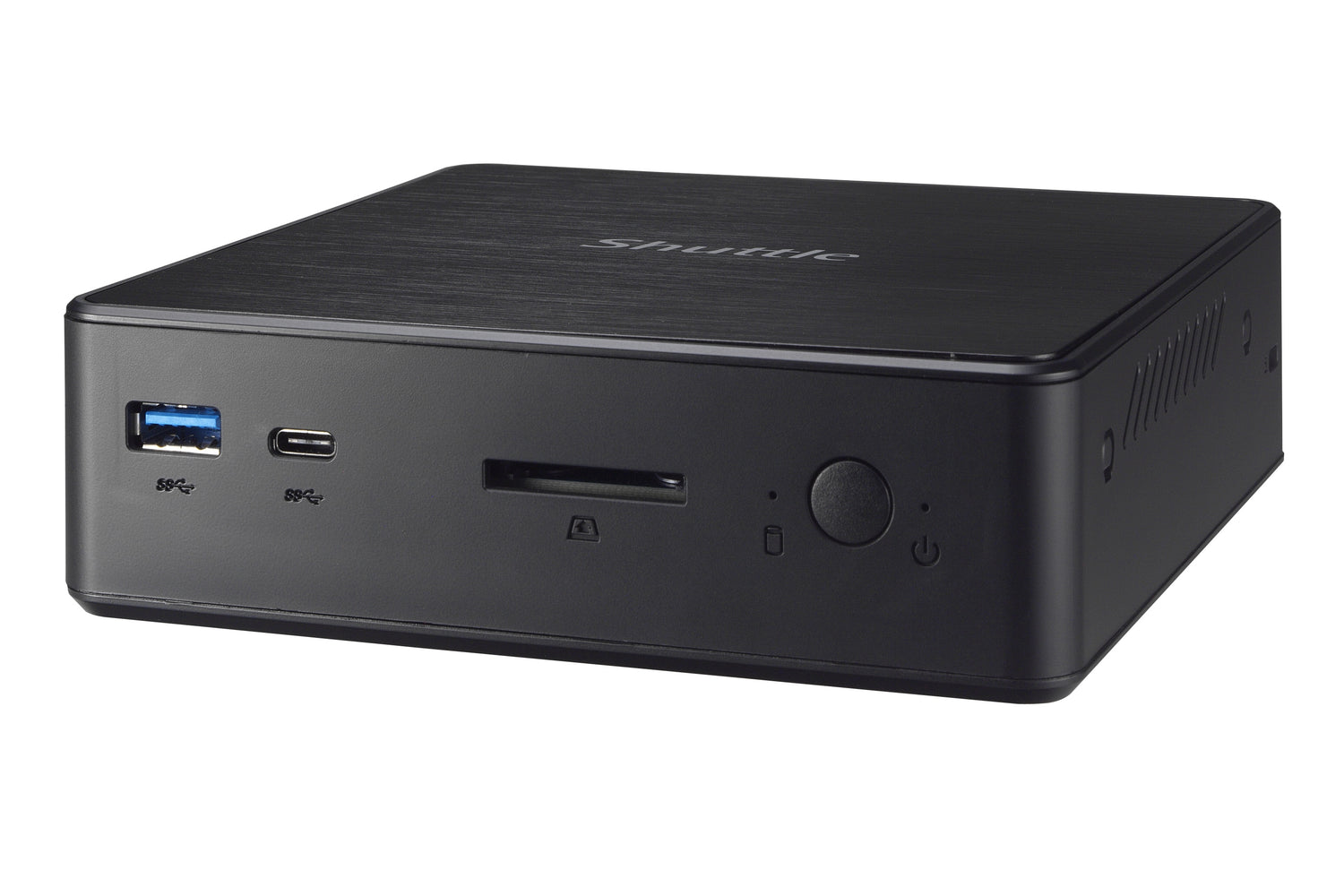

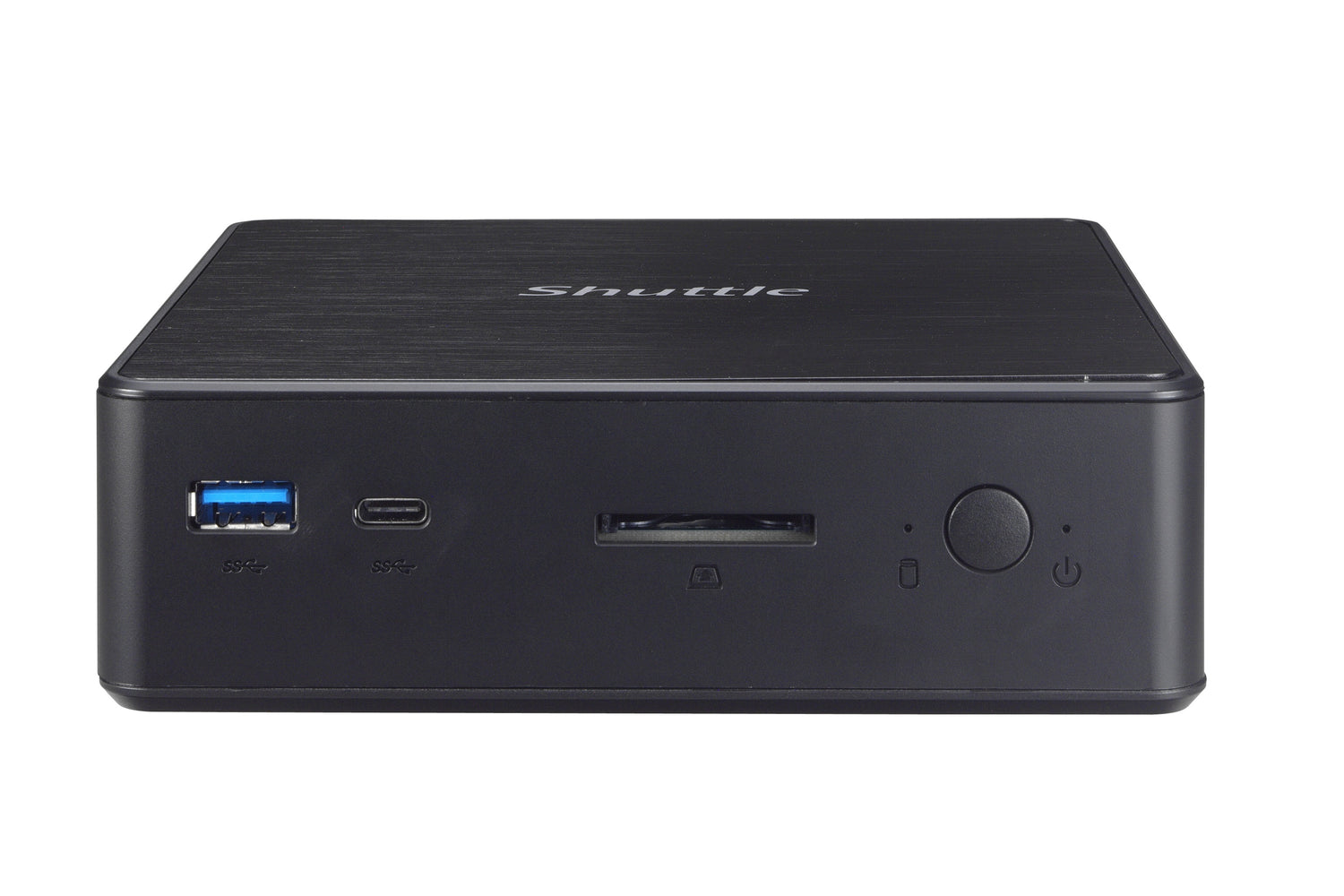

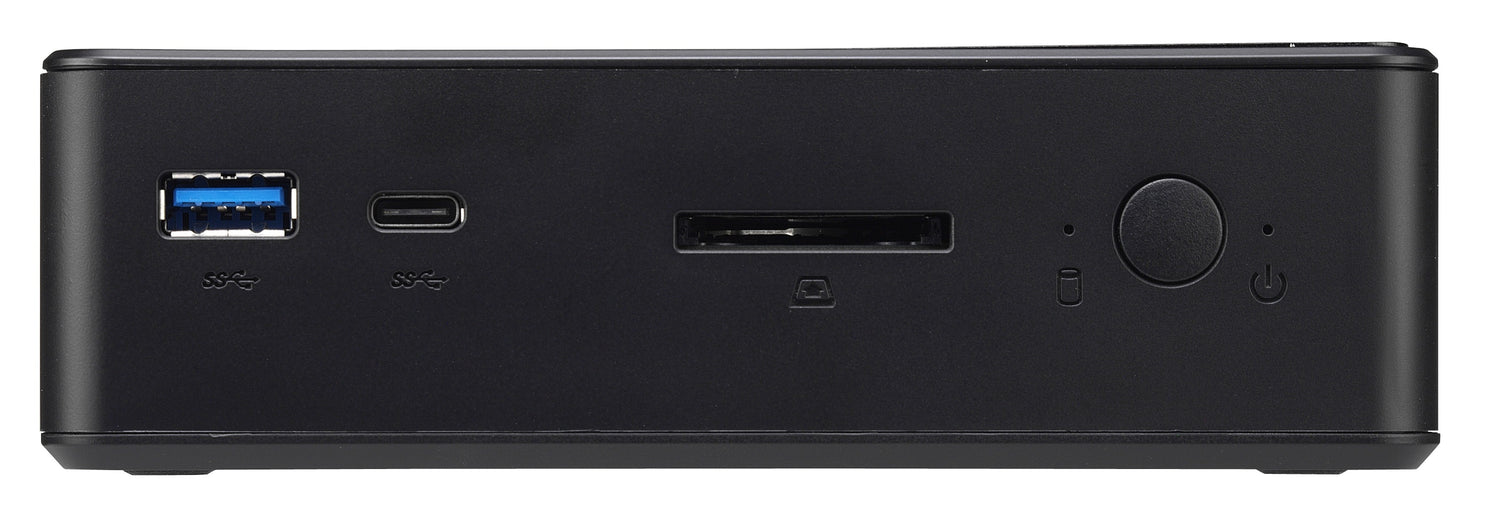

Shuttle XPC Nano NC10U5 Mini PC Barebone Processeur Intel i5-8265U Intégré Sans RAM Sans D
Stock: 0 units
Description
Description
Product overview

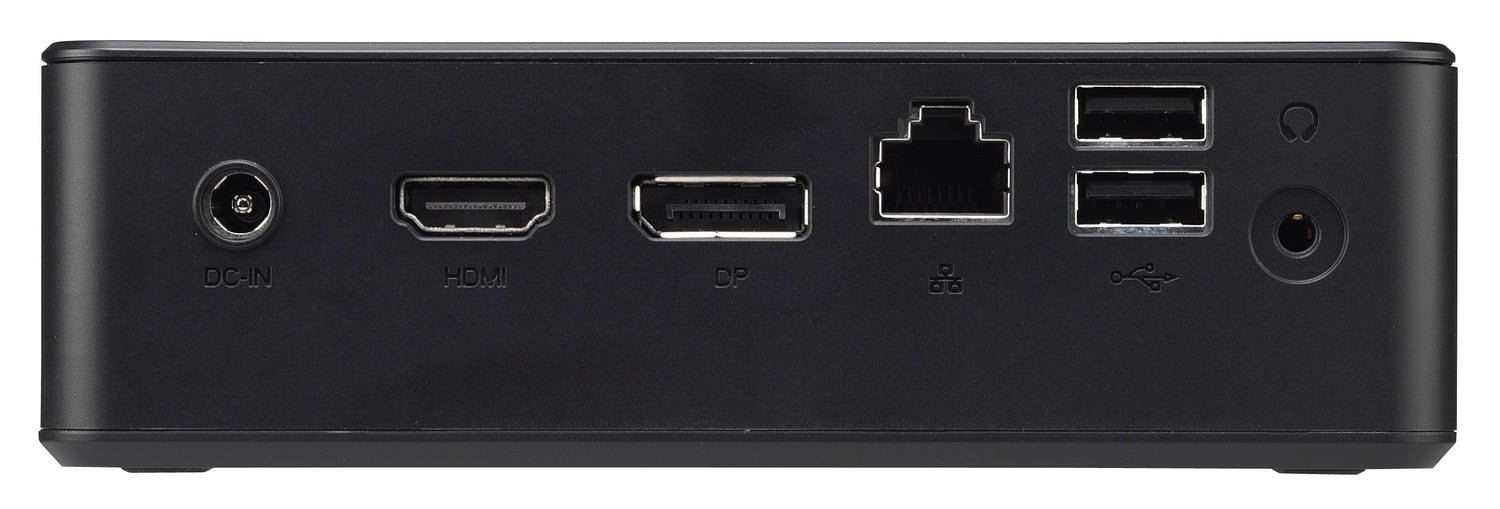

Fourth generation of Shuttle's XPC nano Series brings Whiskey Lake support. The NC10 series is powered by Intel's power-saving ULV (ultra-low-voltage) processors of the Whiskey-Lake-U generation and comprises four models with processors from Celeron to Core i7. All four models support two digital video outputs for UHD/4K displays with 60 Hz and one 2.5" drive that is up to 15 mm in height as well as one M.2-2280 NVMe SSD card. Professional users will appreciate Intel Gigabit-LAN and one serial port which indicates what purposes the NC10 series is mainly intended for: Digital Signage, POS, control, office or even multimedia. HDMI 2.0. The enhanced version of the popular HDMI standard permits even higher screen resolutions. 4K playback in resolutions of 3.840x2.160 and above promise breathtakingly sharp details. And the audio signal is of course still transmitted via the same cable – creating fewer cables. High-resolution DisplayPort. The DisplayPort connector allows for connections with digital high-resolution displays. Besides picture signal, DisplayPort cables can also lead digital sounds signals in excellent quality. Rapid system and program start-up thanks to NVMe support. SSDs are already very fast compared to hard disks. But what is possible thanks to M.2 modules with PCIe Express technology really takes your breath away. The NVMe modules process several gigabytes per second and thus ensure the system starts up in just a few seconds with noticeably shorter program start-up times. Multiformat card reader. At last – no more searching for missing digital camera leads...
Why choose the Shuttle Nano PC NC10U5 , Intel i5-8265U, 1x HDMI, 1x DP, 1x...?
The Shuttle Nano PC NC10U5 , Intel i5-8265U, 1x HDMI, 1x DP, 1x 2.5" bay... is a pc/workstation barebones from Shuttle, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Processor manufacturer: Intel; Processor family: Intel® Core™ i5; Processor generation: 8th gen Intel® Core™ i5. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Conference and boardroom installs
- Classroom and training rooms
- Retail and hospitality displays
- Workstation ergonomics programs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor model | i5-8265U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 1.6 GHz |
| Built-in processor | Yes |
| Processor lithography | 14 nm |
| L3 cache | 6 MB |
| Thermal Design Power (TDP) | 15 W |
| Processor codename | Whiskey Lake |
| CPU configuration (max) | 1 |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics 620 |
| Motherboard chipset | Intel SoC |
| Processor socket | BGA 1528 |
| BIOS type | AMI |
| BIOS memory size | 8 Mbit |
| Audio chip | Realtek ALC662 |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Wi-Fi | Yes |
| LAN controller | Intel® I211 |
| Brand | Shuttle |
| Manufacturer part number | NC10U5 |
| GTIN / UPC | ['0887993001999', '887993001999', '0887993002996', '887993002996', '0887993005478', '887993005478'] |
