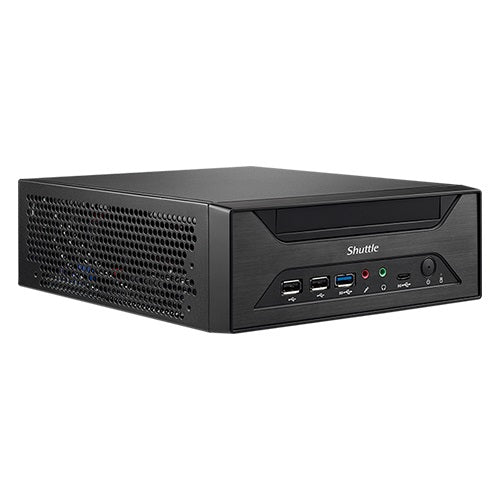

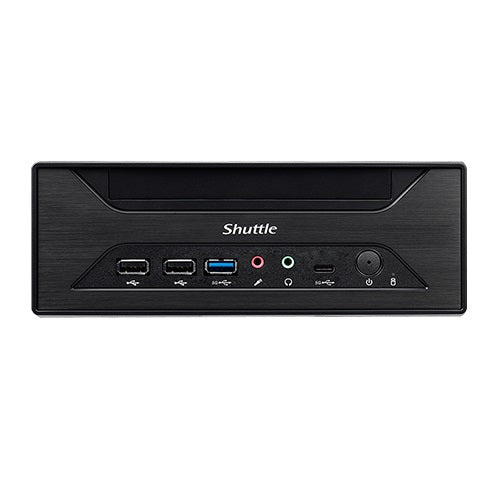

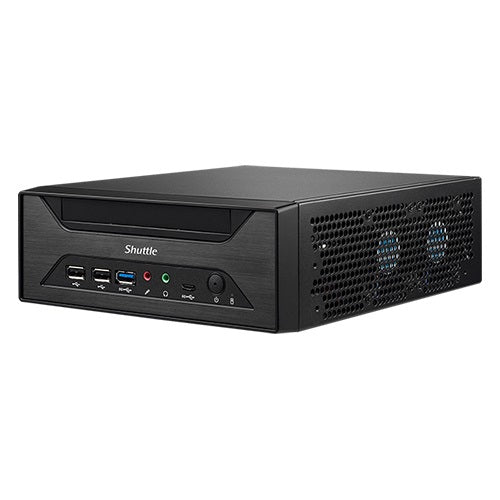

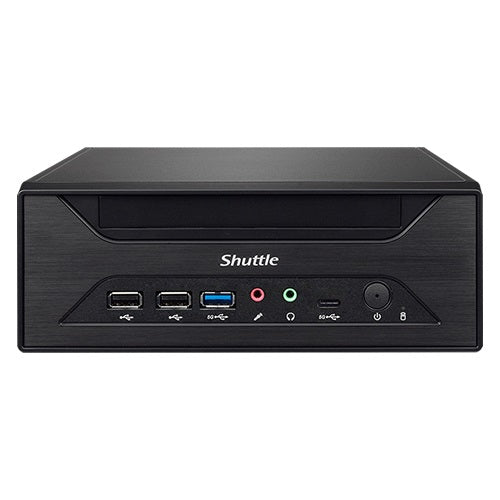

SHUTTLE XPC SLIM XH610 MINI PC BAREBONE INTEL H610 SUPPORT 65W 12E GÉNÉRATION CORE I3
Stock: 1 units
SHUTTLE XPC SLIM XH610 MINI PC BAREBONE INTEL H610 SUPPORT 65W 12E ...
Description
Description
Product overview

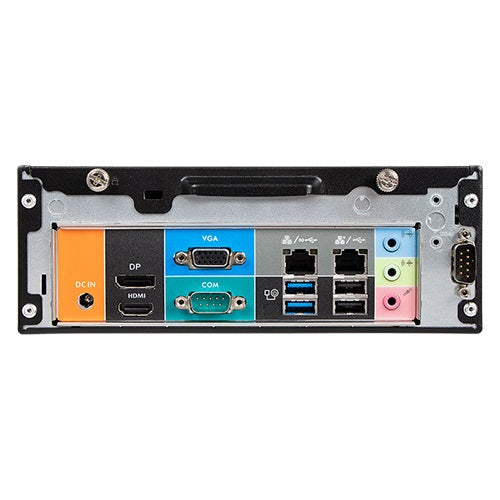

Combination of Connectivity and High Computing. Exceptional Reliability and Optimization to Your Business. Shuttle XPC slim 3-liter XH610/XH610V is equipped with Intel® H610 chipset that supports Intel® 12th LGA1700 65W processors and delivers 4K UHD video content. Up to three displays can be used simultaneously via one HDMI 2.0b, one DisplayPort, and one VGA. Feature an extra storage expansion that supports three 2.5” HDD/SSD storage drives or one 3.5” HDD (with an optional PHD4). Besides, the series includes 4 x USB 3.2 Gen1 (Include one Type-C), 4 x USB 2.0, Intel® 1G + Intel® 2.5G LAN, 2 x M.2, and 2 x RS232 to perform its rich I/O capabilities. In addition, another optional accessory PCM31 can be chosen to support a max of five RS232 ports to connect peripheral devices and deliver a robust performance that can drive highly interactive kiosks, vending machines, digital signage, and surveillance applications.
Why choose the Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP...?
The Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x... is a pc/workstation barebones from Shuttle, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Memory slots type: SO-DIMM; Number of memory slots: 2; Maximum internal memory: 64 GB. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Day-to-day office productivity
- Hybrid and remote work
- Field and mobile teams
- Fleet deployments and refresh cycles
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133,2400,2666,2933,3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Non-ECC | Yes |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | M.2, PCI Express, Serial ATA III |
| NVMe | Yes |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Motherboard chipset | Intel H610 |
| Processor socket | LGA 1700 |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| BIOS type | AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Ethernet LAN | Yes |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| COM ports quantity | 2 |
| DC-in jack | Yes |
| Number of M.2 (M) slots | 1 |
| Chassis type | 3.5L sized PC |
| Product colour | Black |
| Cooling type | Active |
| LED indicators | HDD, Power |
| Brand | Shuttle |
| Manufacturer part number | XH610 |
| GTIN / UPC | ['0887993005171', '887993005171'] |
