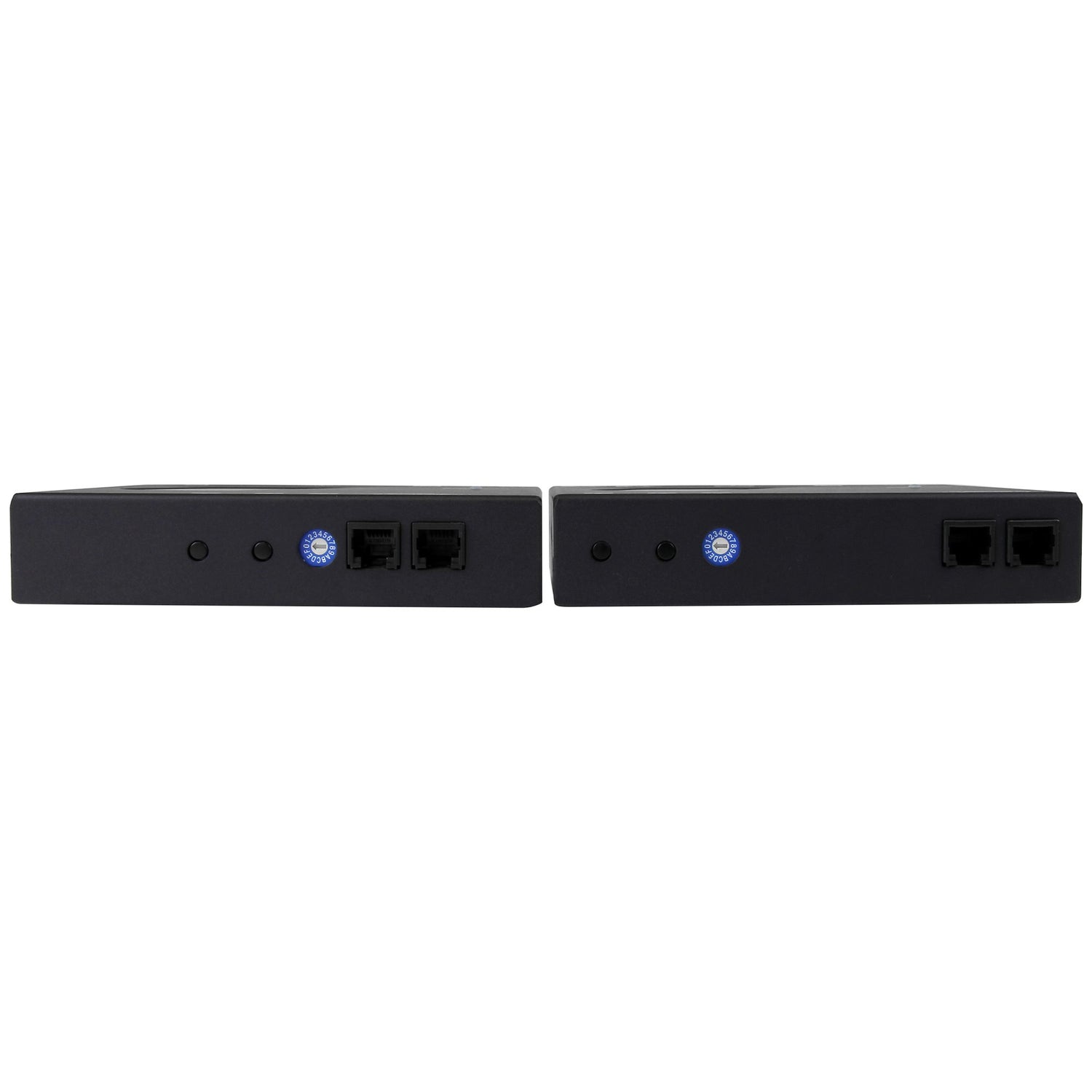

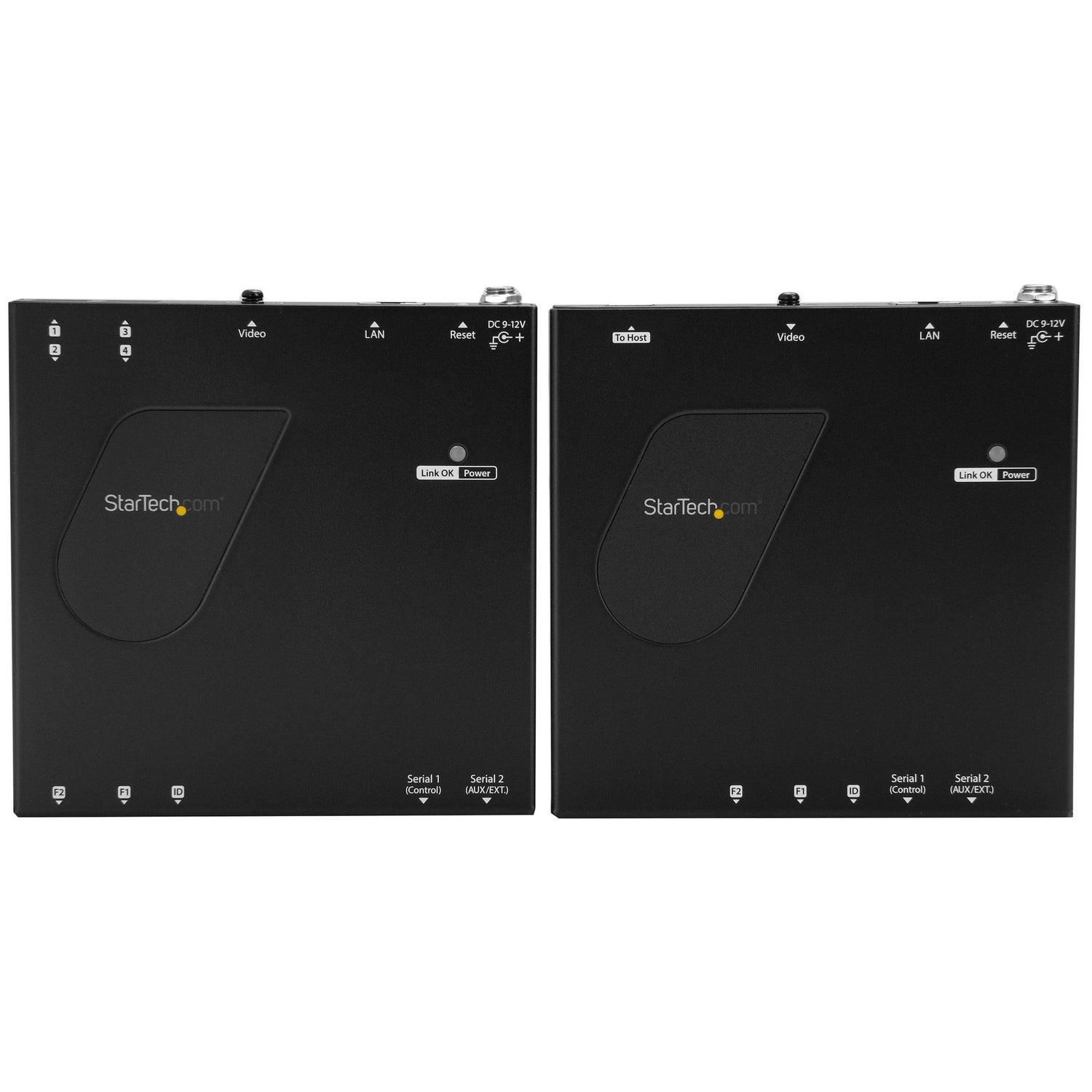

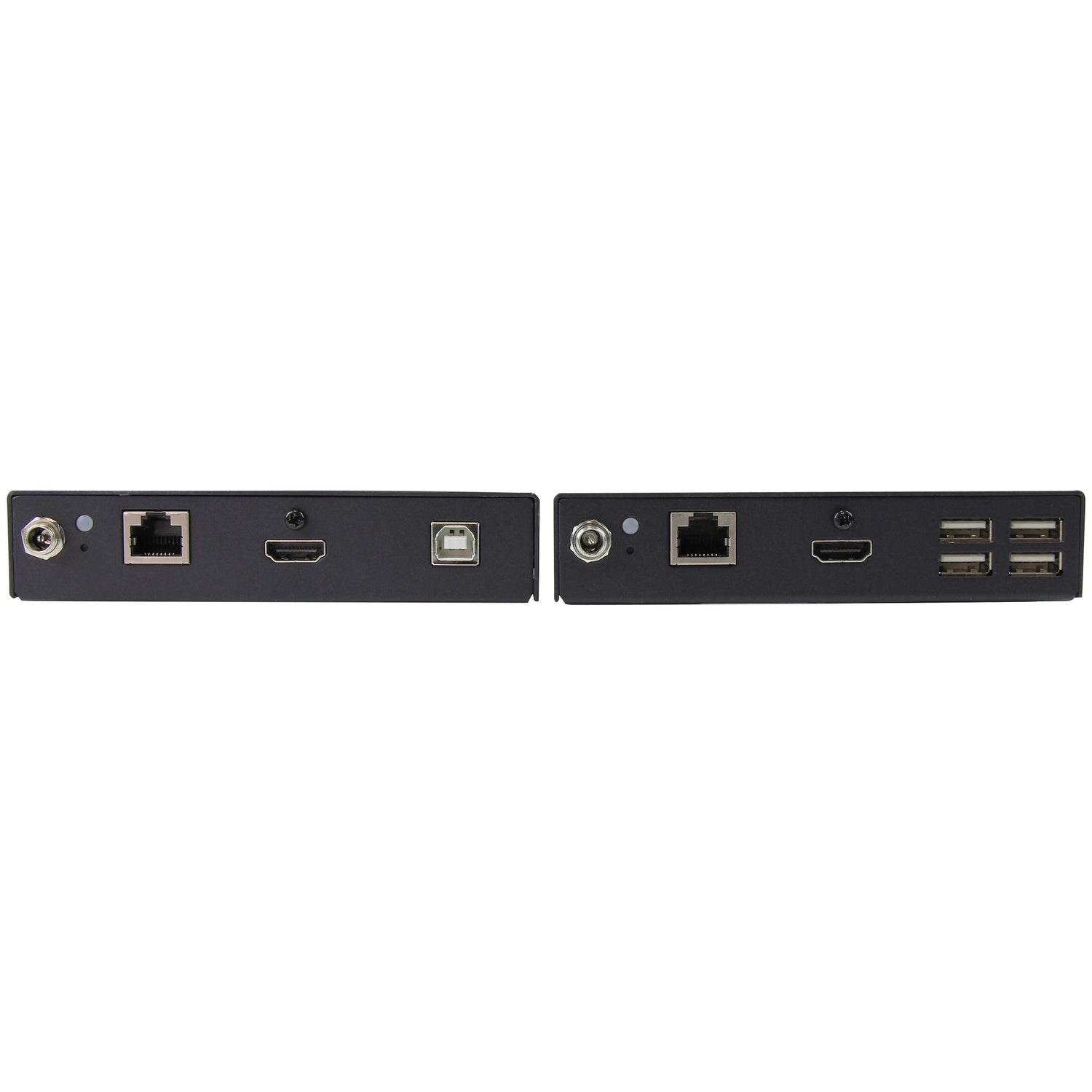

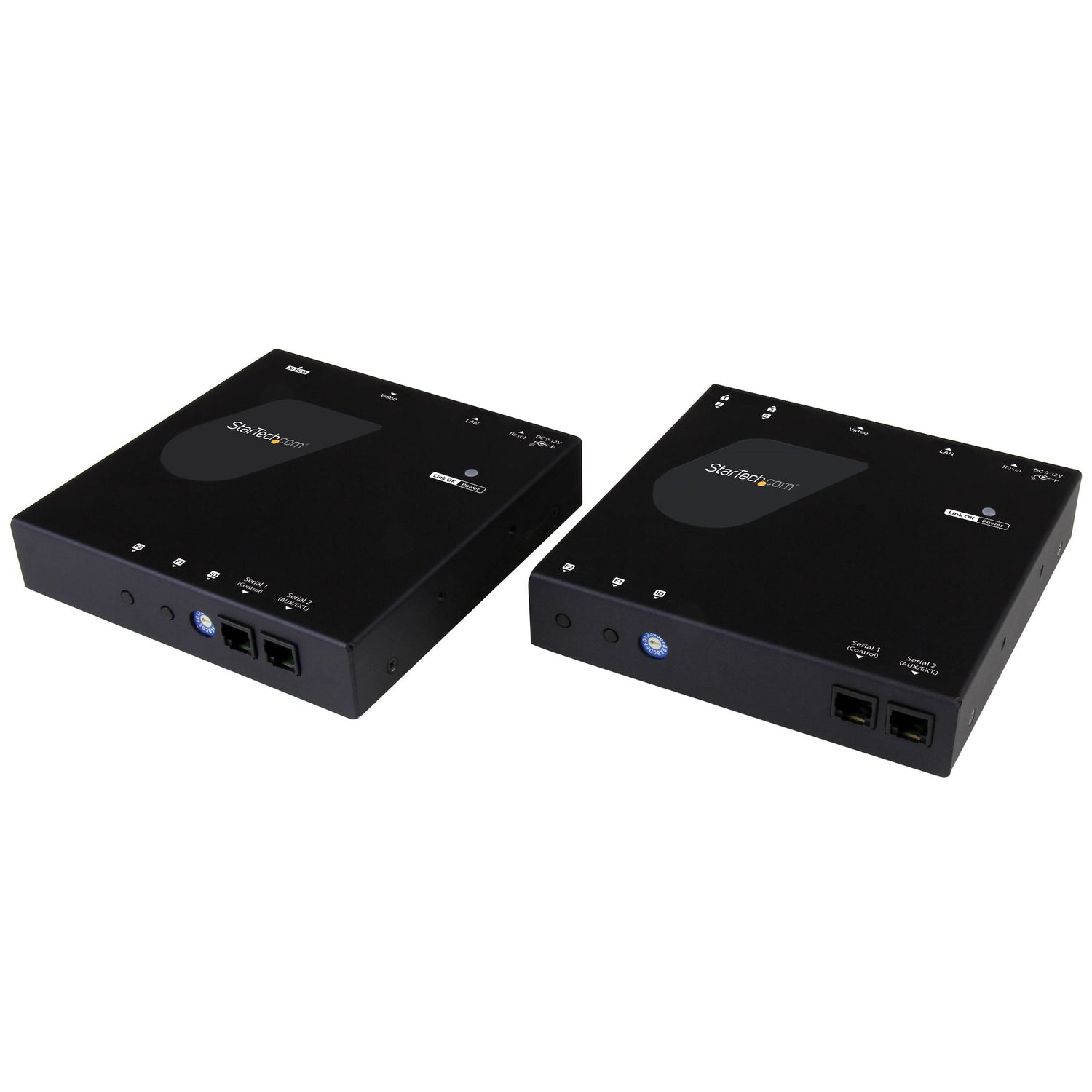

StarTech.com HDMI and USB over IP Distribution Kit - 1080p
Stock: 0 units
Description
Description
Product overview
Deploy content for digital signage through a scalable distribution system with intuitive control and USB extention that’s ideal for point-to-point or video wall applications This HDMI® over IP kit lets you extend an HDMI signal, as well as four USB peripheral device connections, over your network. You can use additional receivers (sold separately) to distribute the HDMI and USB signals to multiple locations and combine your remote displays to create a video wall while using the USB connection to extend a touch screen to create an interactive digital signage presentation. Versatile configuration options In a point-to-multipoint setup, you can connect the HDMI over IP kit through an unmanaged or managed Gigabit LAN portal. You can also connect one or several sources (transmitters) to multiple displays (receivers) over your network, using a managed Gigabit Ethernet switch with IGMP. For further scalability, you can combine up to 16 different extender kits. For smaller-scale applications, you can use the extender kit as a point-to-point video extender by connecting the transmitter and receiver units directly over Cat5 or Cat6 cabling for a one-to-one HDMI extension up to 330 feet (100 meters). Manage your video distribution from your mobile device This HDMI distribution kit features an easy-to-use video control software app that helps you manage your IP video distribution. The app is simple to set up, with automatic hardware detection, and it lets you switch video sources for each remote display. You can also create and manage a video wall, for an impressive digital signage...
Why choose the StarTech.com HDMI and USB over IP Distribution Kit - 1080p?
The StarTech.com HDMI and USB over IP Distribution Kit - 1080p is a av extenders from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Type: AV transmitter & receiver; Maximum resolution: 1920 x 1200 pixels; Cable types supported: Cat5e. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Audio system | stereo |
| LED indicators | Link, Power, Reset |
| Supported video modes | 720p, 1080p |
| Material | Aluminium |
| Rack mounting | Yes |
| Daisy chain | Yes |
| Product colour | Black |
| Certification | CE, FCC, TAA, REACH |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 5 |
| USB connector type | USB Type-A, USB Type-B |
| AC input voltage | 100-240 V |
| Operating voltage | 5 V |
| Input current | 0.6 A |
| Output current | 1.5 A |
| External power adapter | Yes |
| Current | 2 A |
| Power plug type | Type M |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight | 1.25 kg |
| Receiver dimensions (WxDxH) | 131 x 131 x 27 mm |
| Transmitter dimensions (WxDxH) | 131 x 131 x 27 mm |
| Package width | 367 mm |
| Package depth | 238 mm |
| Package height | 76 mm |
| Package weight | 2.2 kg |

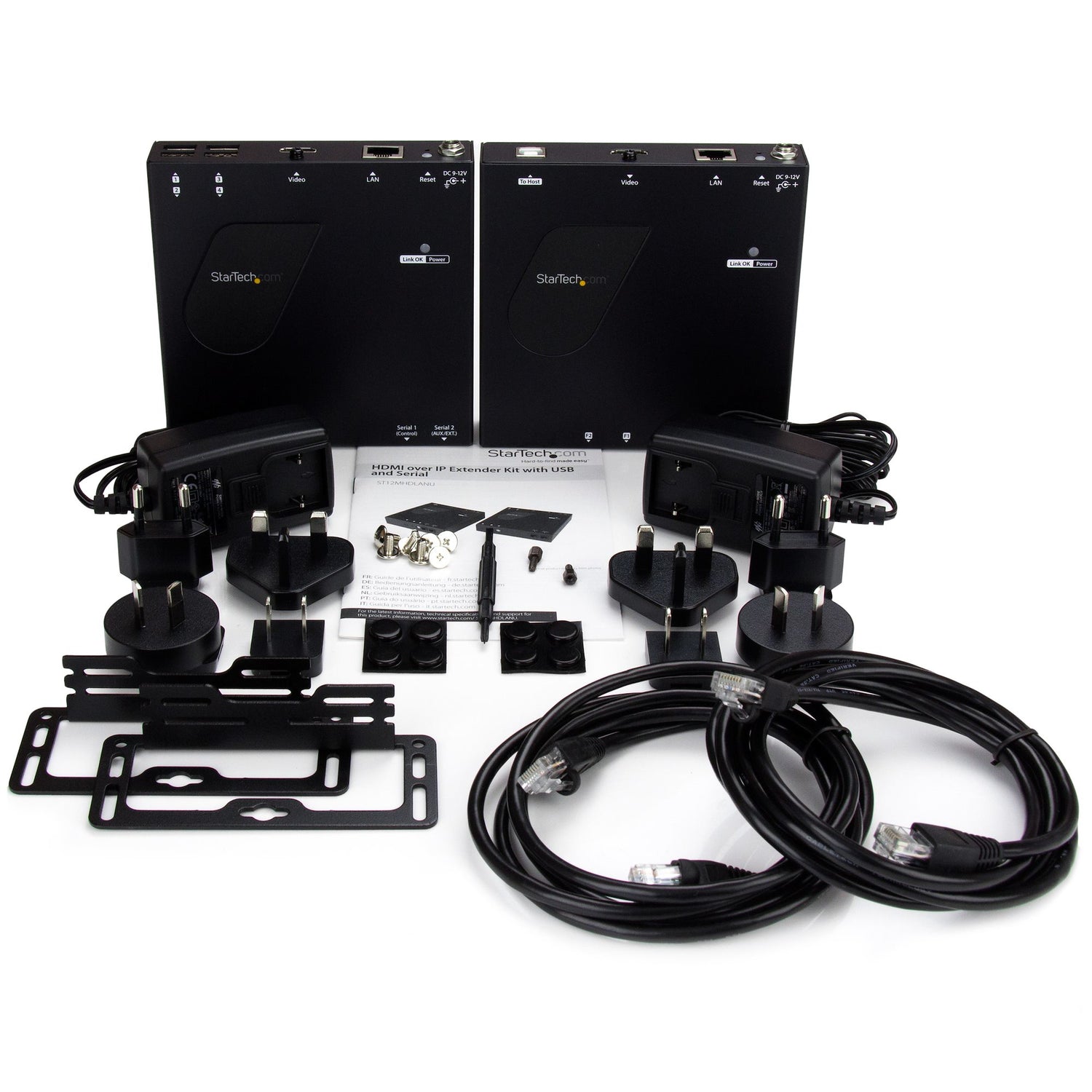

| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
| Brand | StarTech.com |
| Manufacturer part number | ST12MHDLANU |
| GTIN / UPC | ['0065030862110', '065030862110'] |
