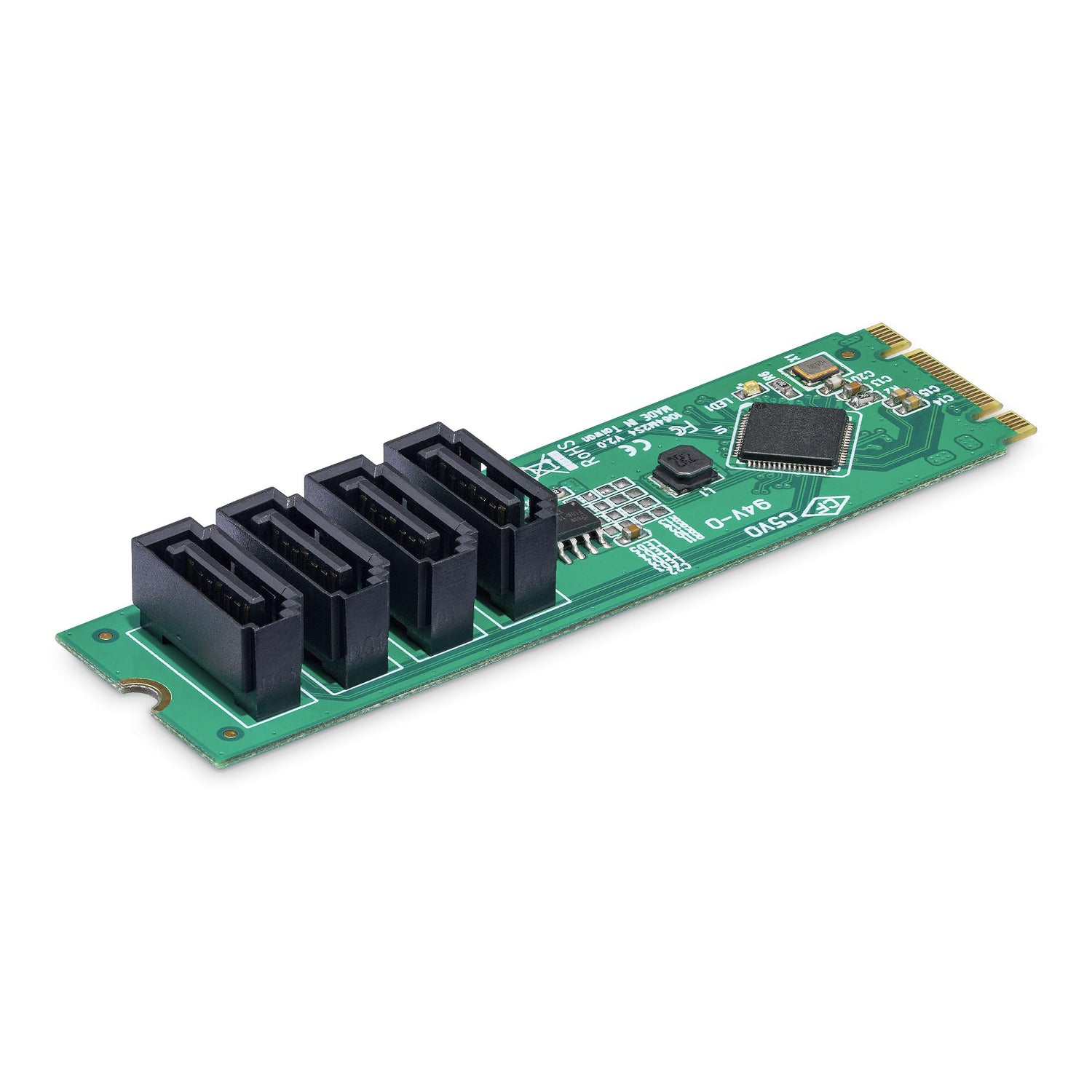

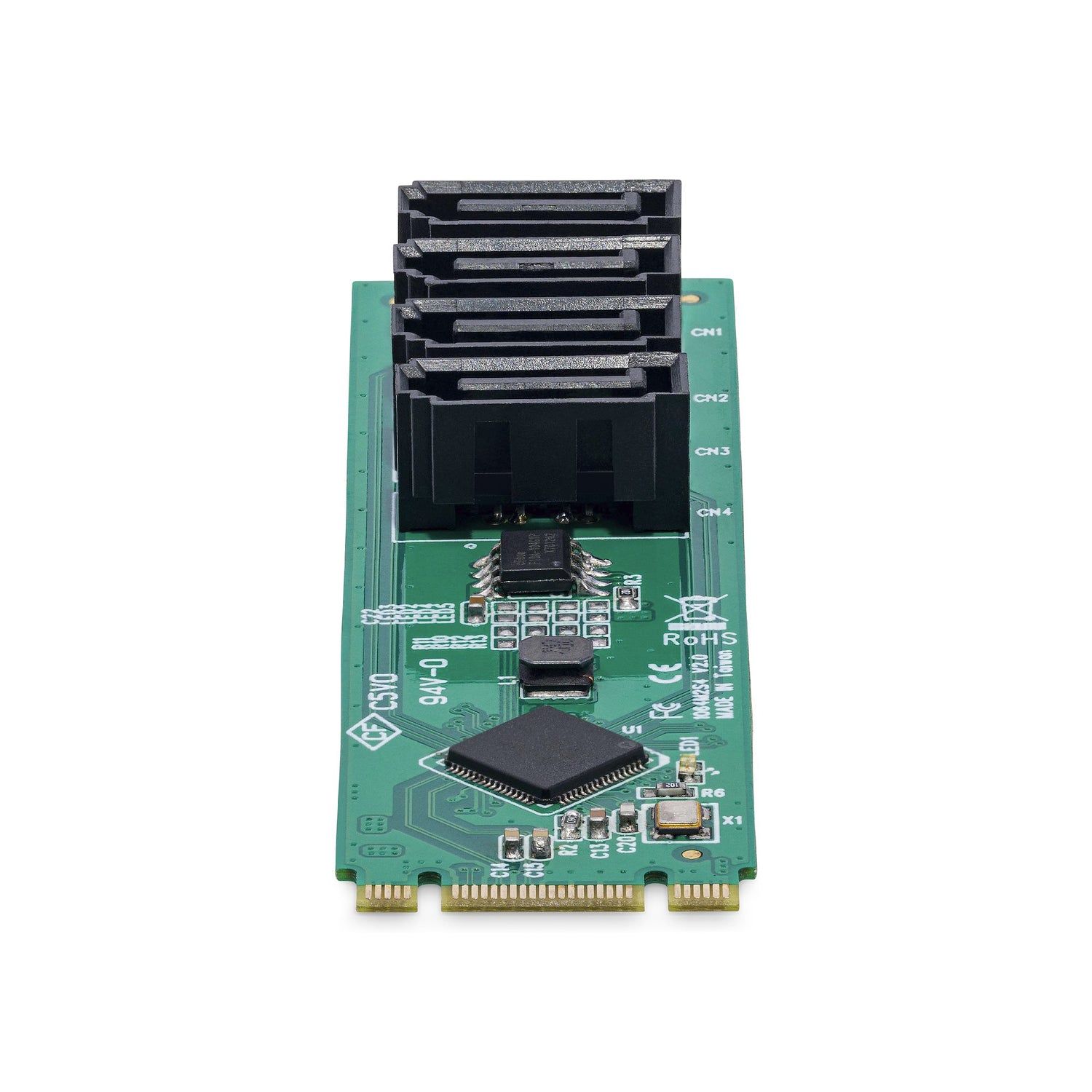

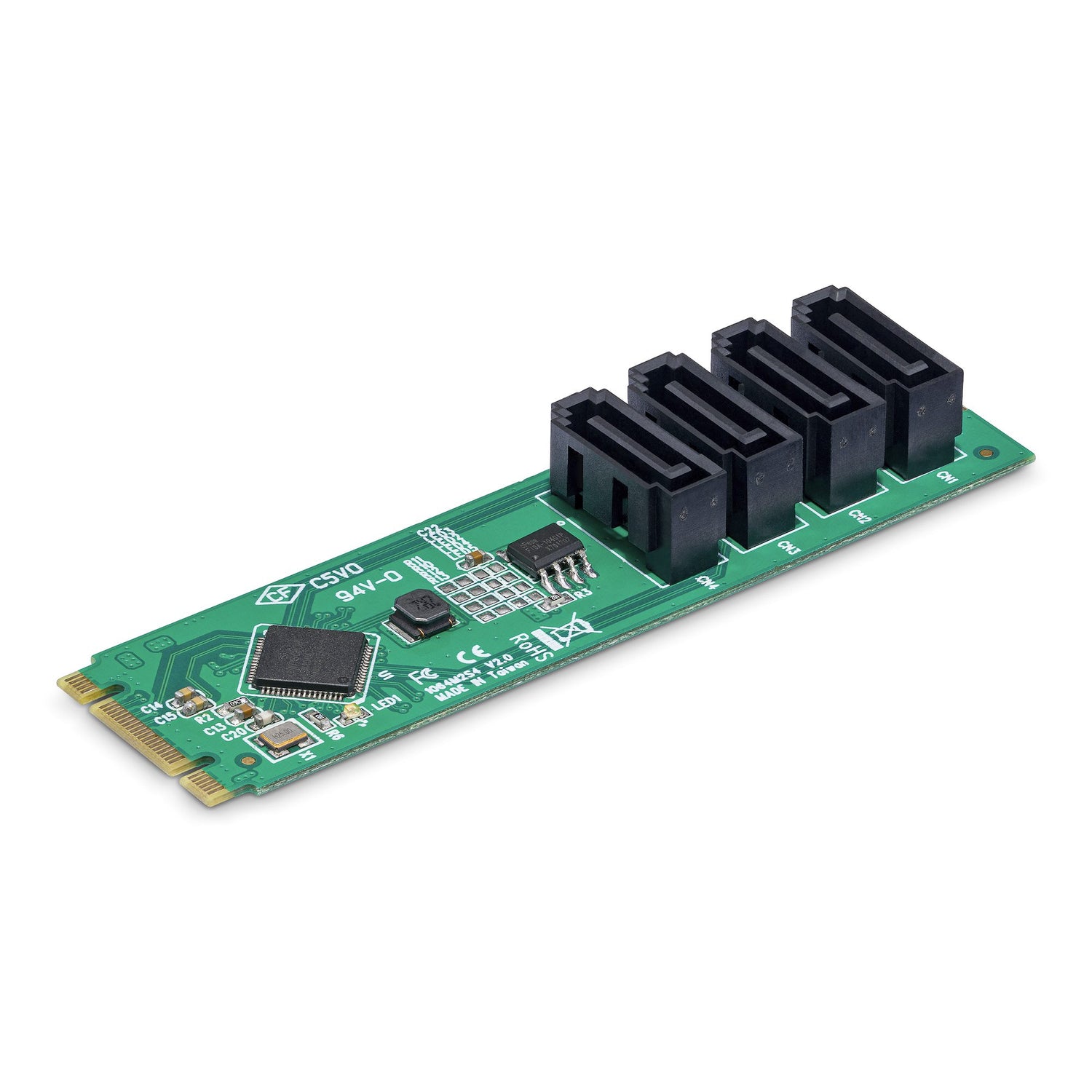

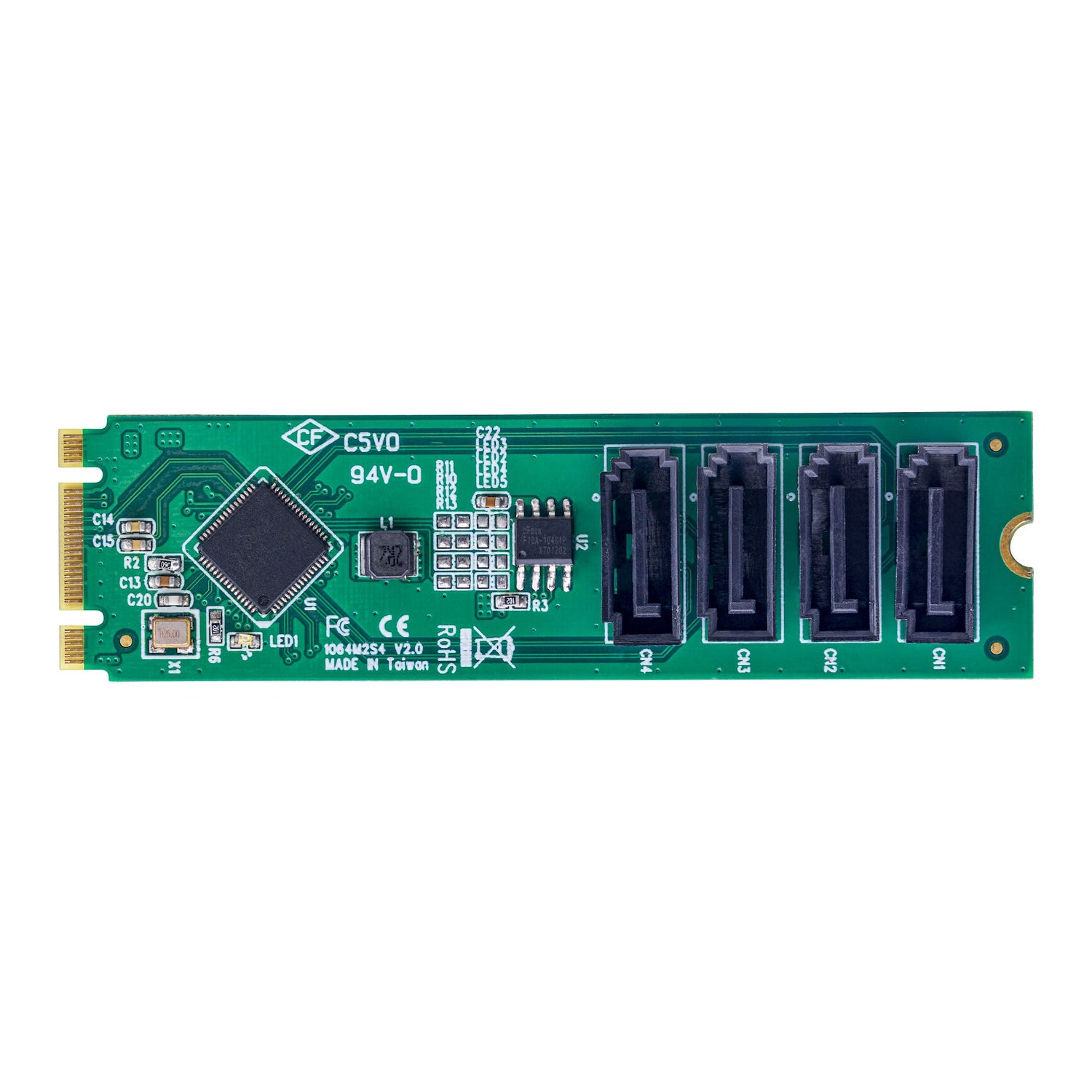

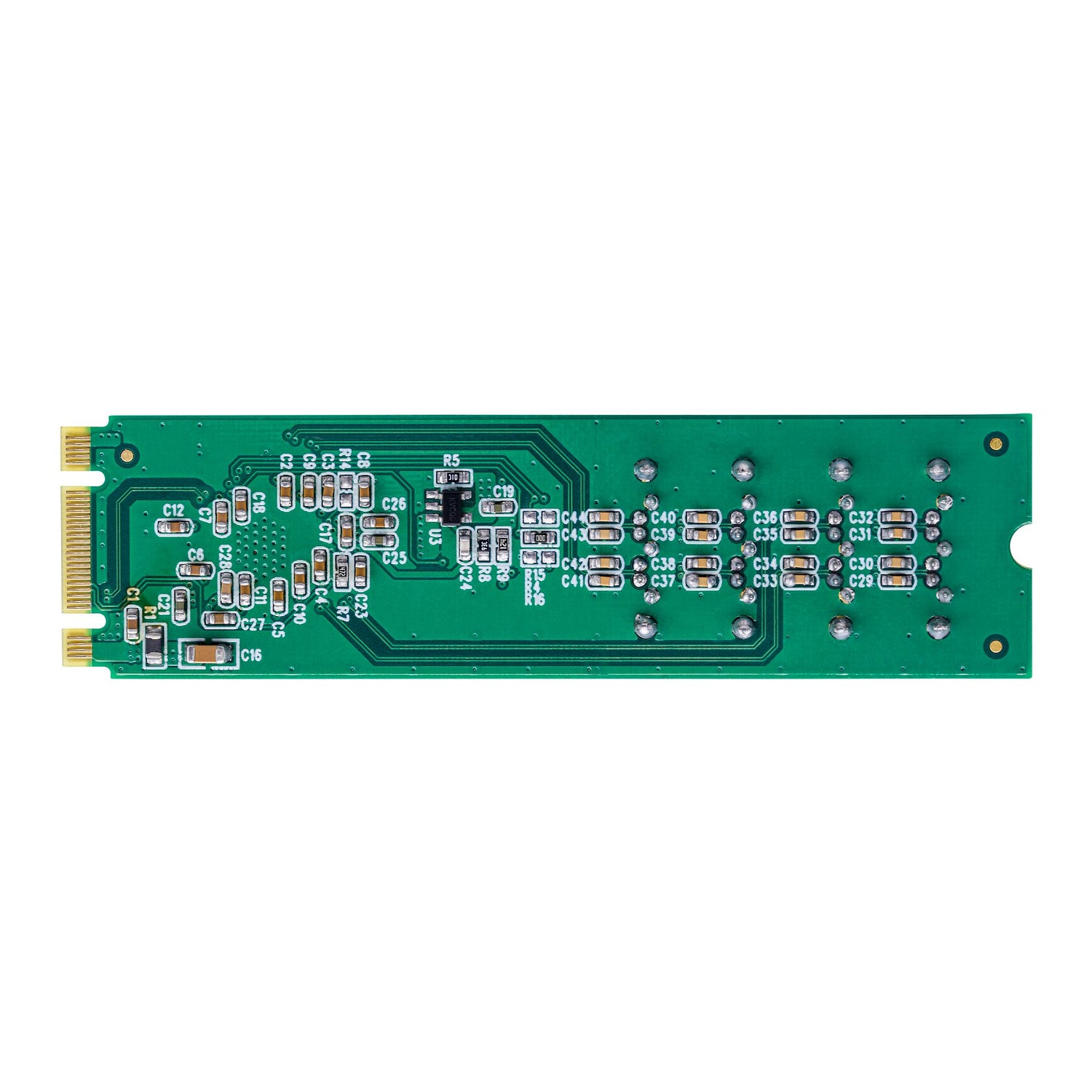

StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card, ASM1064 Chipset, M.2 NVMe to 4x HDD/SSD for Windows/macOS/Linux, TAA
Stock: 504 units
StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA ...
Description
Description
Product overview
Install four SATA drives via one M.2 slot for a high-density storage solution Add up to four independent SATA drives to a desktop via a single 2280 M.2 drive slot, maintaining SATA 6Gbps read/write speeds per drive. Cost-Effective Storage Expansion This setup can be used with modern motherboards or external enclosures that feature a PCIe-based M.2 slot, allowing for a cost-effective expansion of storage capabilities. Four 19.6-inch (50cm) SATA cables are included to connect the HDDs or SSDs for quick installation. Compatibility The drivers auto-install in most major operating systems, including Windows 8 and later, macOS, and Linux. This adapter card is compatible with all hardware platforms, such as Intel and AMD, and supports software storage management, including Microsoft's Storage Spaces. Applications This storage expansion card is ideal for data storage, backups, NAS setups, photographers, videographers, and content creation, where large storage capacity and reliability is required. ASMedia ASM1064 Chipset The 4-Port M.2 NVMe to SATA Adapter supports TRIM, SMART data pass-through, SATA I/II/III, and PCI Express 3.0. Note: Only compatible with PCIe-based B-key or M-key M.2 drive slots Note: Not compatible with SATA-based M.2 drive slots
Why choose the StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0...?
The StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA... is a interface cards/adapters from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Host interface: M.2; Output interface: SATA; Expansion card standard: PCI 3.0. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Host interface | M.2 |
| Output interface | SATA |
| Expansion card standard | PCI 3.0 |
| Internal SATA ports quantity | 4 |
| Port multiplier | Yes |
| Internal | Yes |
| Product colour | Green |
| LED indicators | Power |
| Mean time between failures (MTBF) | 68555579 h |
| Hot-swap | Yes |
| Chipset | ASMedia ASM1064 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows... |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
| Linux operating systems supported | Yes |
| Compliance certificates | RoHS |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 11 mm |
| Weight | 8 g |
| Cables included | SATA |
| User guide | Yes |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 142 g |
| Products per master (outer) case | 75 pc(s) |
| Master (outer) case width | 685 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 306 mm |
| Brand | StarTech.com |
| Manufacturer part number | 4P-SATA-M2-ADAPTER |
| GTIN / UPC | ['0065030903745', '065030903745'] |
