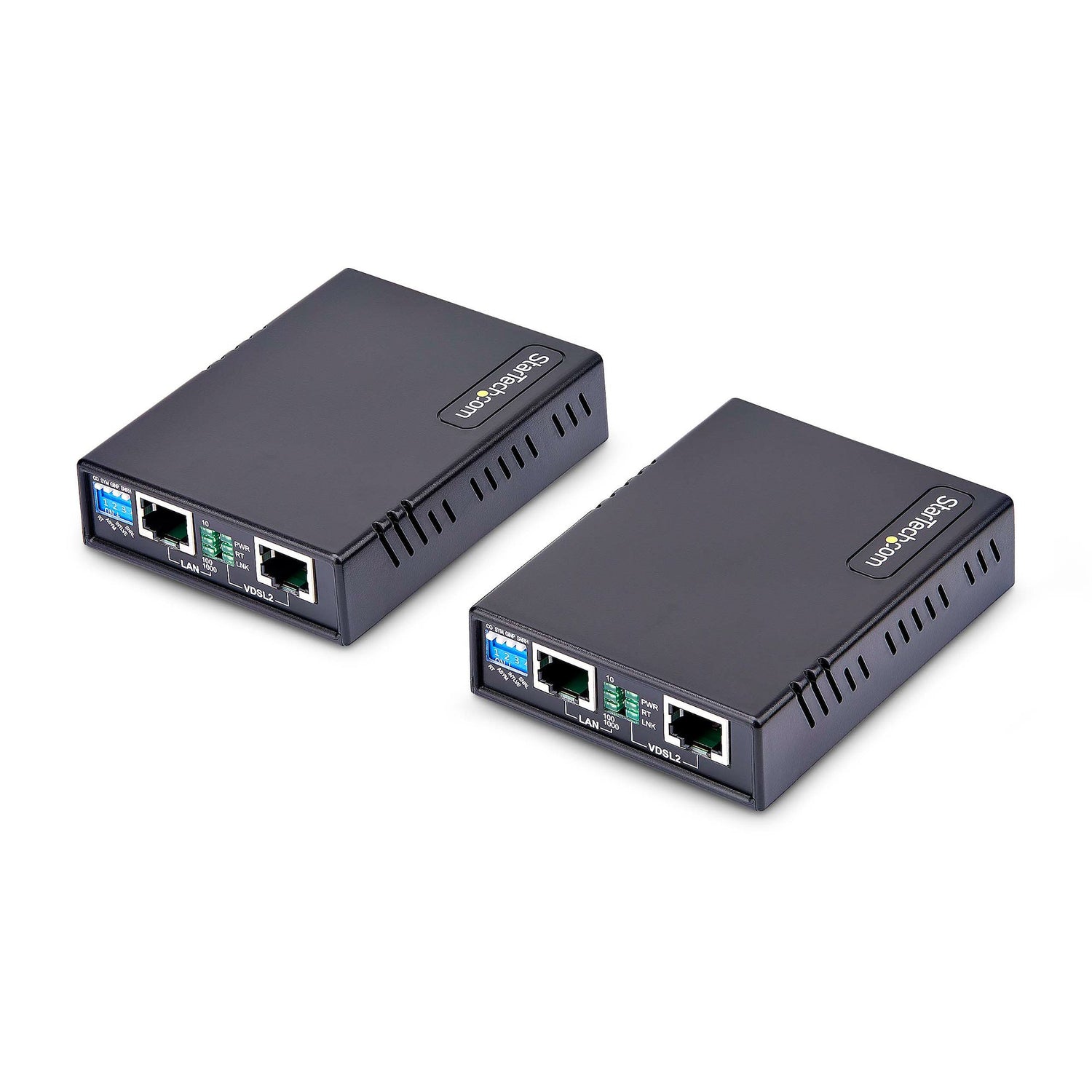

StarTech.com VDSL2 Ethernet Extender Kit over Single Pair Wire, Up to 0.6mi (1km) Long Range LAN Repeater over Phone Line/CAT5e/CAT6, Up to 300Mbps, Replacement for 110VDSLEXT - TAA
Stock: 265 units
StarTech.com VDSL2 Ethernet Extender Kit over Single Pair Wire, Up ...
Description
Description
Product overview

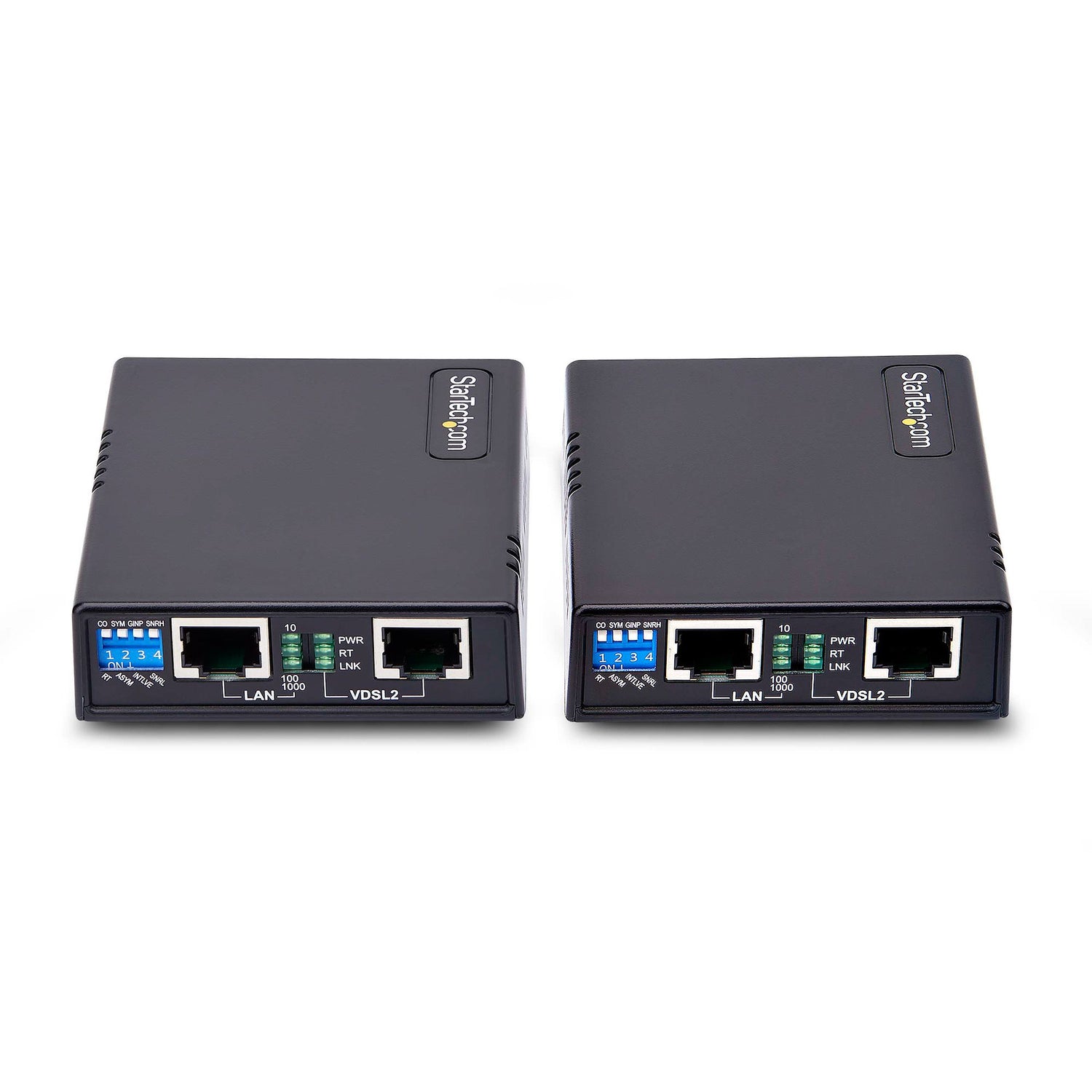

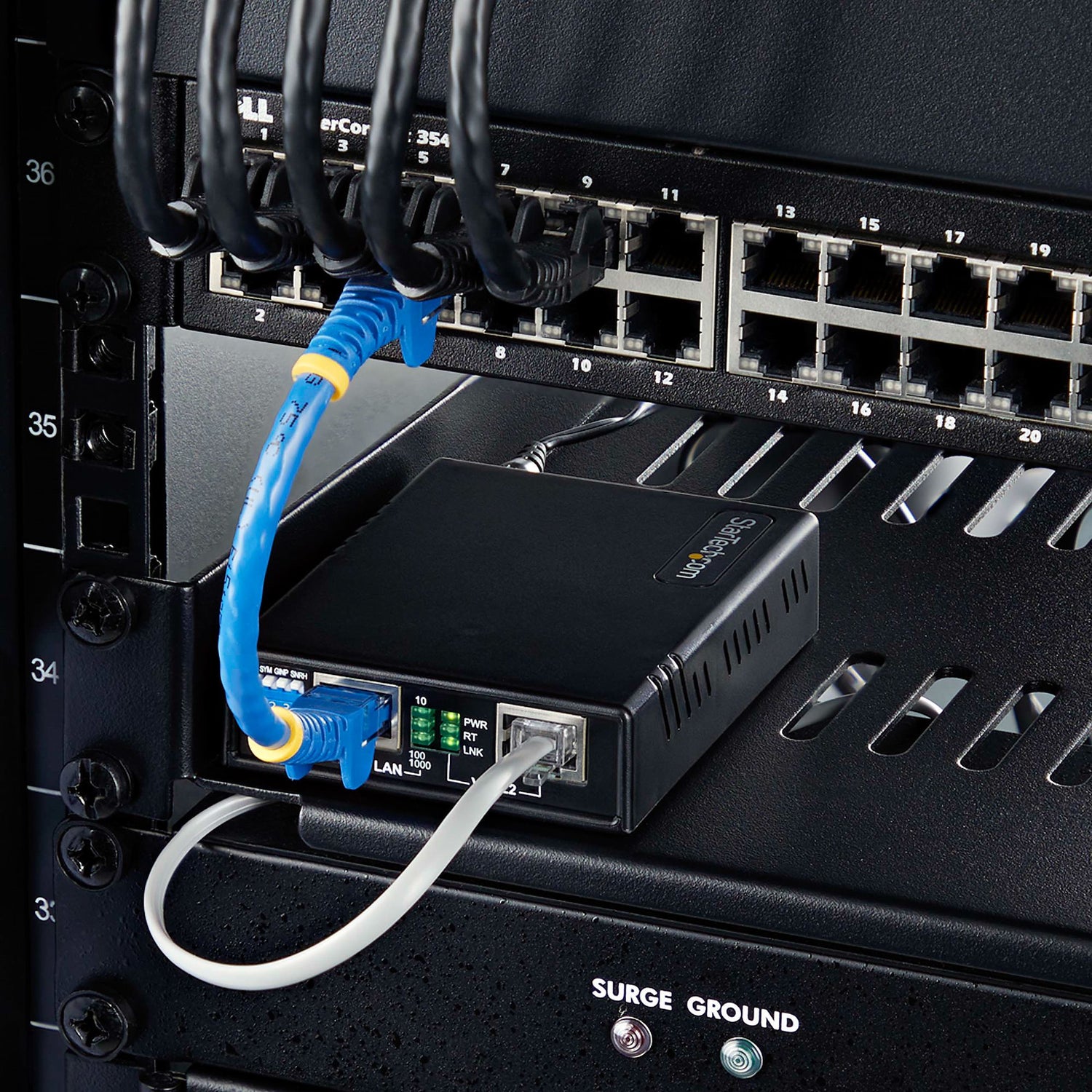

Extend a network up to 0.6 miles (1km) over single pair wire/phone line wire UTP Extend a network over VDSL2, using Cat5e (or better) UTP Cabling or Single-Pair (or better) Telephone Wire at distances up to 0.6mi (1km). Extend Network Connectivity Extend a network over VDSL2 using UTP, CAT5e/6 or RJ11 cabling over distances up to 0.6mi (1km). Speeds of up to 300 Mbps (aggregated) are available at shorter distances. Supports VDSL2 35b/30a/17a and features ITU-T G.993.5 G.Vectoring and G.INP technologies. Thoughtful Design The installation can be customized by using DIP switches. Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance. The Gigabit Ethernet Extender has LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity. Versatile Applications The Long-Range LAN Extender can be mounted on a wall, using the included hardware, or installed on a shelf or other surface. The kit includes two power adapters, one for each VDSL Extender. The extender works with third-party VDSL2 IP DSLAMs in CPE (RT) mode and extends the network for applications such as remote office or branch locations or IP-based video solutions. The 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension.
Why choose the StarTech.com VDSL2 Ethernet Extender Kit over Single Pair...?
The StarTech.com VDSL2 Ethernet Extender Kit over Single Pair Wire, Up to... is a network extenders from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Type: Network repeater; Maximum transfer distance: 1000 m; Data transfer rate: 300 Mbit/s. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Type | Network repeater |
| Maximum transfer distance | 1000 m |
| Data transfer rate | 300 Mbit/s |
| Cable types supported | Cat5e, Cat6 |
| Chipset | RTL8685FB-CG |
| VLAN tagging | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| DC-in jack | Yes |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| Product colour | Black |
| LED indicators | LAN, Power |
| Quantity per pack | 2 pc(s) |
| AC input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Power consumption (typical) | 3.8 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Width | 74 mm |
| Depth | 97 mm |
| Height | 23 mm |
| Weight | 116 g |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Package width | 150 mm |
| Package depth | 180 mm |
| Package height | 130 mm |
| Package weight | 700 g |
| Sustainability compliance | Yes |
| Compliance certificates | Trade Agreements Act (TAA) |
| Master (outer) case width | 510 mm |
| Master (outer) case length | 425 mm |
| Master (outer) case height | 430 mm |
| Products per master (outer) case | 15 pc(s) |
| Brand | StarTech.com |
| Manufacturer part number | VDSL-LAN-EXTENDER-1G |
| GTIN / UPC | ['0065030899925', '065030899925'] |
