TAA (fédéral) Convertisseur de média et de débit 10/100TX vers 100FX/LC MM, Alimentation multirégion
Stock: 0 units
Description
Description
Product overview

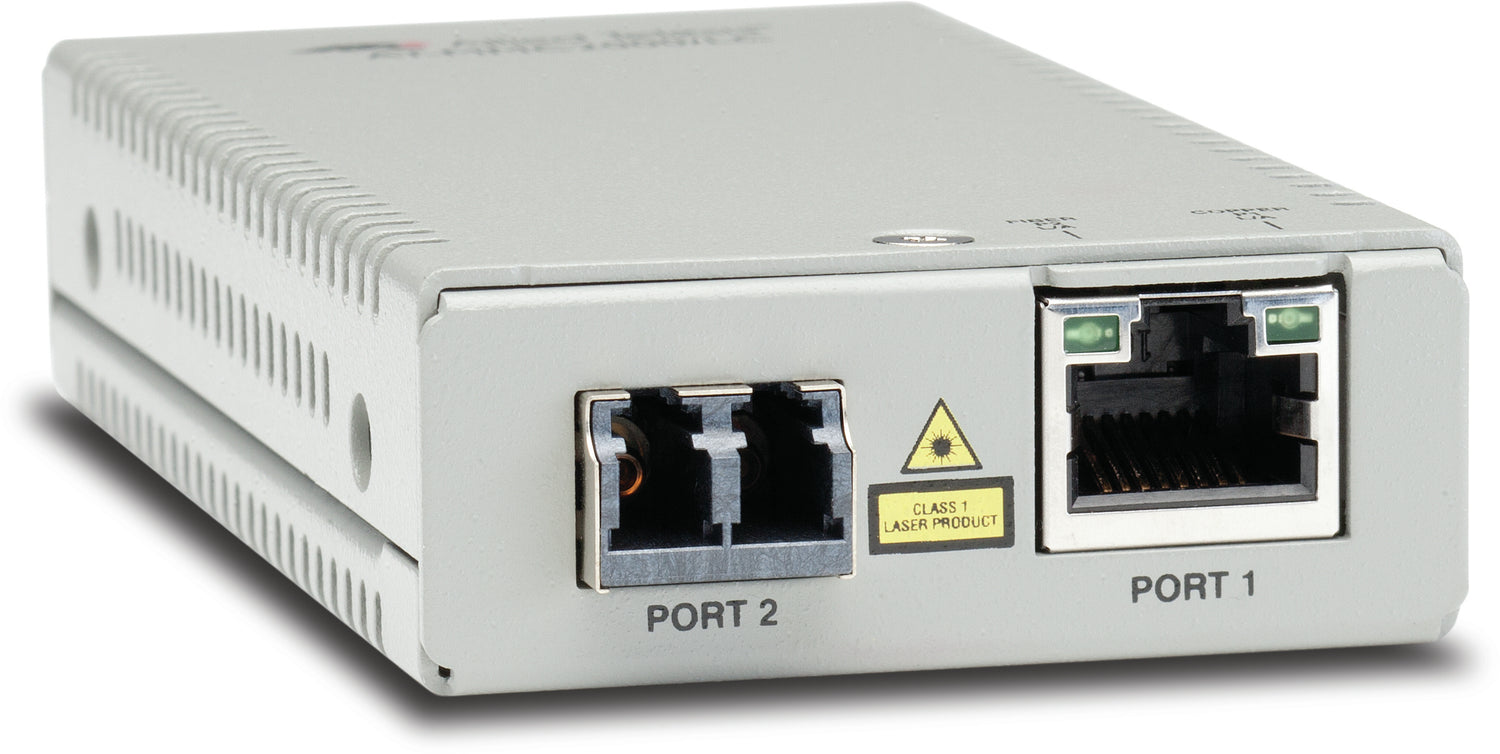

This standalone mini media and rate converter features 10/100TX to 100FX conversion with a multi-mode LC fiber connector and supports up to 2 km. It is compatible with the MMCR18 rack-mount chassis. Copper to Fiber Mini Media and Rate Converters. Overview. The Allied Telesis MMC Series of mini media converters leverages its smaller size to not only help the environment with a small carbon footprint, but also to save space in its working environment. Despite its compact size, the MMC Series delivers all the power and functionality of standard size media converters. Extend Networks. The MMC Series are available in 100Mbps or 1000Mbps models. Depending on the model chosen, the fiber-optic port has options for fixed SC, ST, LC or SFP connectors capable of multi-mode or single-mode fiber connectivity. The twisted-pair copper port has an RJ-45 connector supporting either 100Mbps or 1000Mbps, with a maximum operating distance of 100 meters (328 feet). VLAN Support. Many new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network. The MMC Series are fully compatible with these long packets, enabling them to be used in modern networks. Media converters not supporting this feature discard these extra long packets, making them unsuitable for modern networks. Small and Flexible. The smaller size and external power supply of the MMC Series allows them to be used almost anywhere. Smart MissingLink (SML). The Smart MissingLink™ (SML) feature monitors network connections and provides...
Why choose the Allied Telesis AT-MMC200/LC-960 network media converter 100...?
The Allied Telesis AT-MMC200/LC-960 network media converter 100 Mbit/s... is a network media converters from Allied Telesis, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Maximum data transfer rate: 100 Mbit/s; Converter input interface: 100Base-TX; Converter output interface: 100Base-FX. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.1Q |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Fiber ethernet cabling technology | 1000BASE‑SX |
| Jumbo frames support | Yes |
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| Store-and-forward | Yes |
| Duplex system | Full |
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -20 dBmW |
| Tx power (max) | -14 dBmW |
| Rx power (min) | -32 dBmW |
| LED indicators | Activity, Link |
| Product colour | Grey |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | LC |
| Input voltage | 12 V |
| Input current | 0.14 A |
| Power consumption (typical) | 1.7 W |
| Power over Ethernet (PoE) | Yes |
| Width | 56 mm |
| Depth | 101.6 mm |
| Height | 21.8 mm |
| Weight | 170 g |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| User guide | Yes |
| Manual | Yes |
| Quick installation guide | Yes |
| Safety | FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI |
| Brand | Allied Telesis |
| Manufacturer part number | 990-006981-960 |
| GTIN / UPC | ['0767035218663', '767035218663'] |
