TP-LINK OMADA CONVERTISSEUR 10/100/1000 MBPS RJ45 VERS 1000 MBPS MONOMODE SC WDM BI-DIRECTIONNEL
Stock: 0 units
Description
Description
Product overview

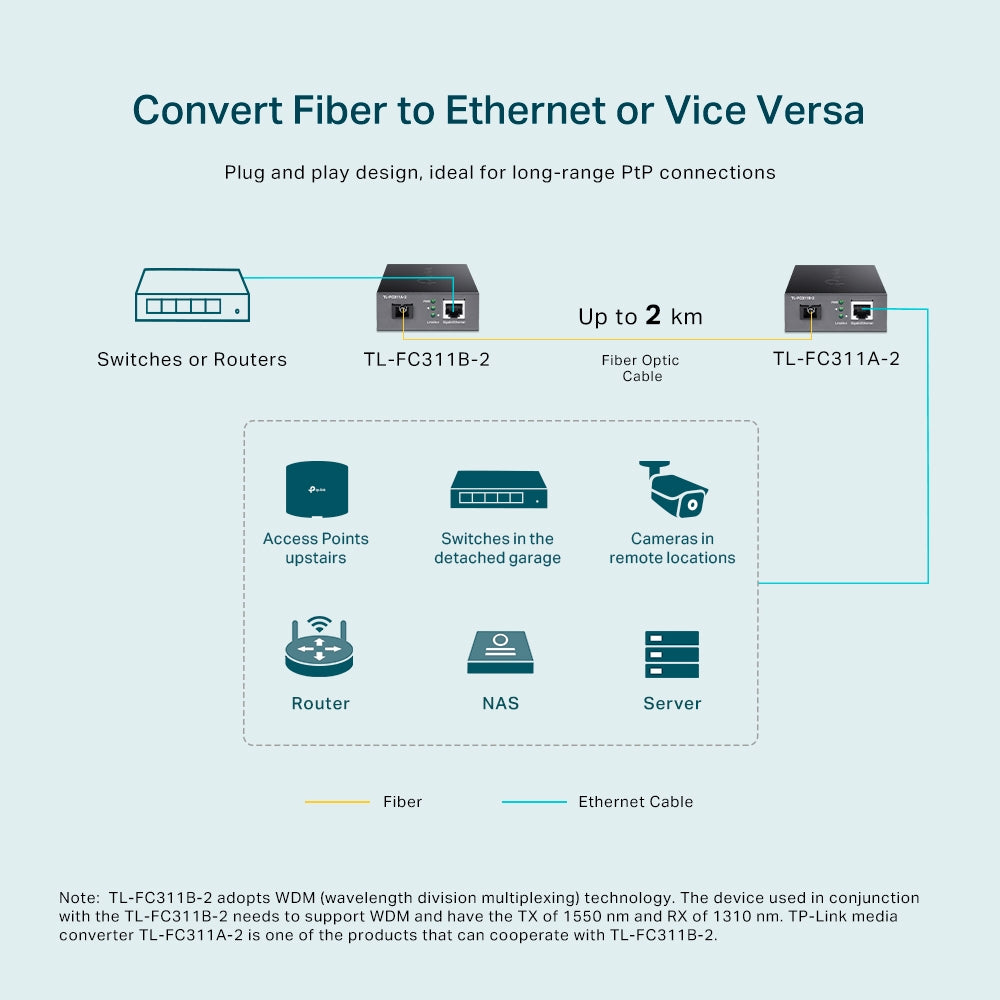

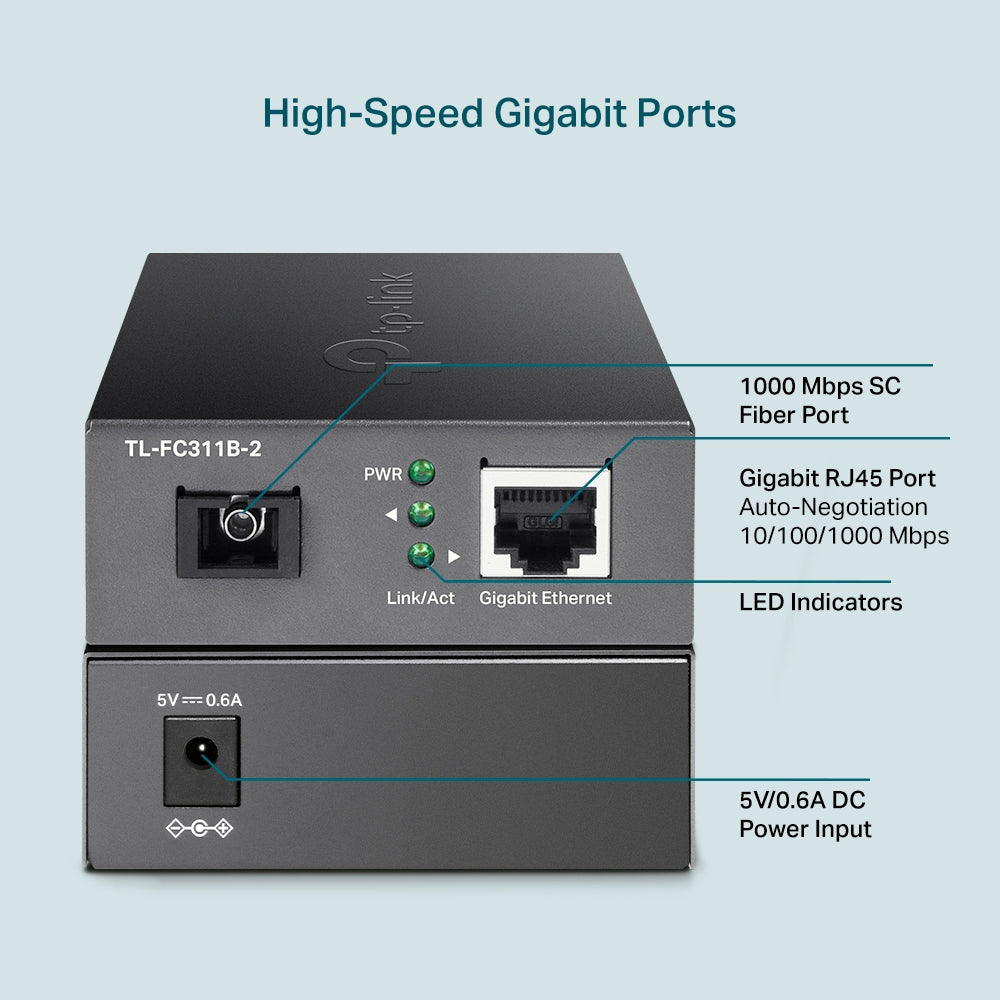

What This Product Does. TL-FC311B-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking. How This Product Works. TL-FC311B-2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311B-2 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311B-2 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC311A-2 is one of the products that can cooperate with TL-FC311B-2. Other Features. Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Why choose the TP-Link Gigabit WDM Media Converter?
The TP-Link Gigabit WDM Media Converter is a network media converters from TP-Link, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Maximum data transfer rate: 1000 Mbit/s; Ethernet interface type: Gigabit Ethernet; Ethernet LAN data rates: 10,100,1000 Mbit/s. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transfer rate | 1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Maximum transfer distance | 2000 m |
| Wavelength-division multiplexing (WDM) | Yes |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |

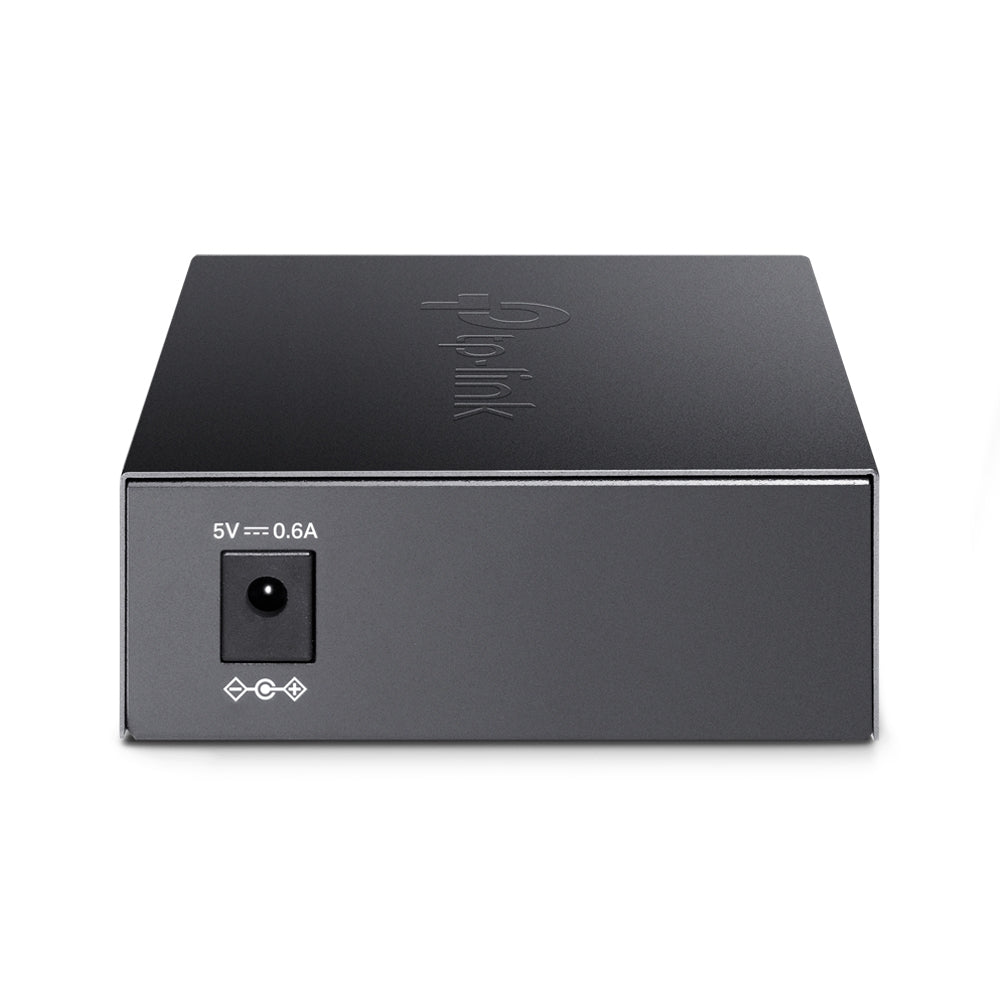

| DC-in jack | Yes |
| Output voltage | 5 V |
| Output current | 0.6 A |
| External power adapter | Yes |
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Package width | 165 mm |
| Package depth | 204 mm |
| Package height | 65 mm |
| Package weight | 360 g |
| Harmonized System (HS) code | 85176990 |
| Brand | TP-Link |
| Manufacturer part number | TL-FC311B-2 |
| GTIN / UPC | ['6935364072902', '6935364010577', '0845973030940', '845973030940', '0845973030926', '845973030926', '5054444604879'] |
