MODULE SFP+ BIDIRECTIONNEL TP-LINK OMADA 10GBASE-BX MONOMODE WDM SPÉC : LC/UPC
Stock: 0 units
Description
Description
Product overview

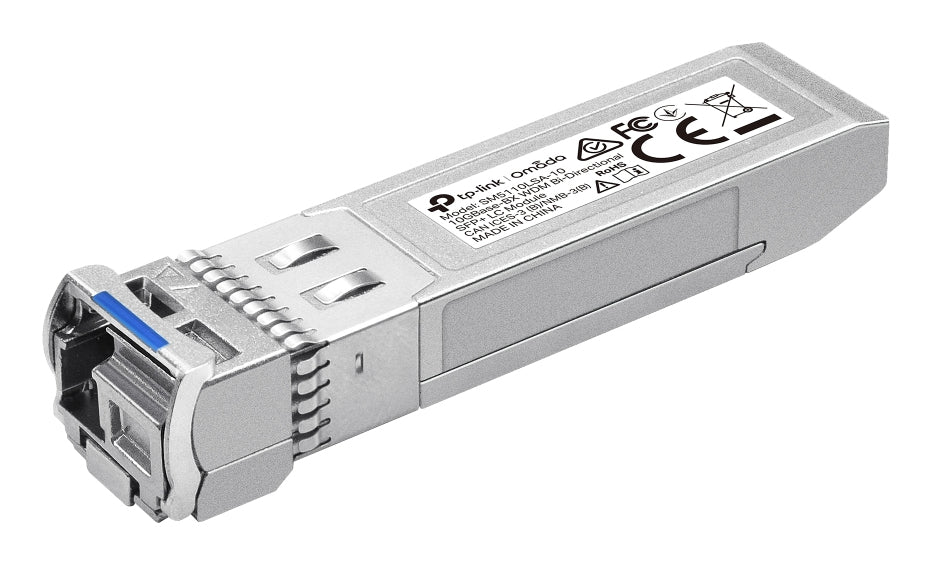

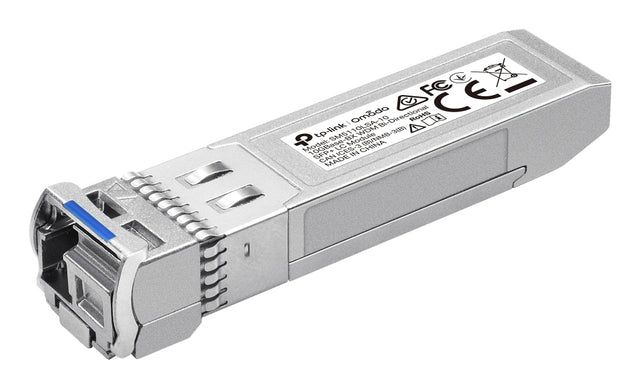

The SM5110LSA-10 is designed to extend transmission distance up to 10km with a maximum rate of 10Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which is cost-saving.
Why choose the TP-Link Omada SM5110LSA-10 network transceiver module Fiber...?
The TP-Link Omada SM5110LSA-10 network transceiver module Fiber optic... is a network transceiver modules from TP-Link, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — SFP transceiver type: Fiber optic; Maximum data transfer rate: 10312 Mbit/s; Interface type: SFP+. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10312 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Tx wavelength (max) | 1330 nm |
| Rx wavelength (max) | 1270 nm |
| Networking standards | IEEE 802.3ae |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Product colour | Silver |
| Hot-swap | Yes |
| Input voltage | 3.3 V |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 57 mm |
| Depth | 14 mm |
| Height | 12 mm |
| Quantity per pack | 1 pc(s) |
| Manual | Yes |
| Brand | TP-Link |
| Manufacturer part number | SM5110LSA-10 |
| GTIN / UPC | ['8885020622928', '0810142821667', '810142821667'] |
