COMMUTATEUR D'AGRÉGATION GERÉ DE NIVEAU 3 TP-LINK OMADA 26 PORTS 10G EMPILABLE AVEC 6 EMPLACEMENTS SFP+ 25G
Stock: 0 units
Description
Description
Product overview

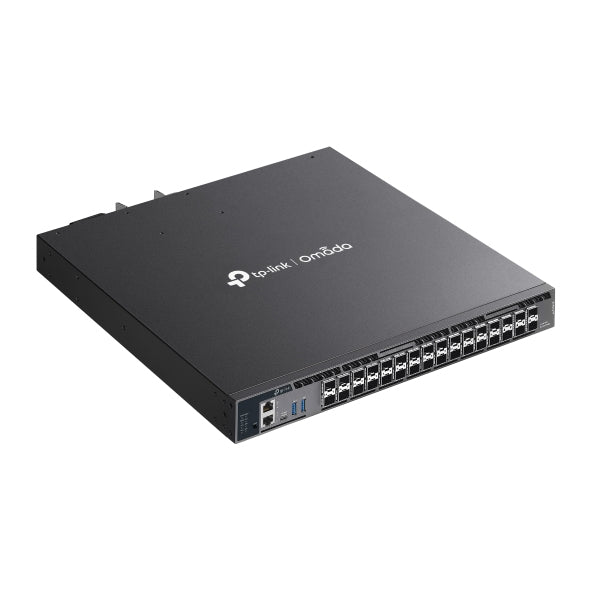

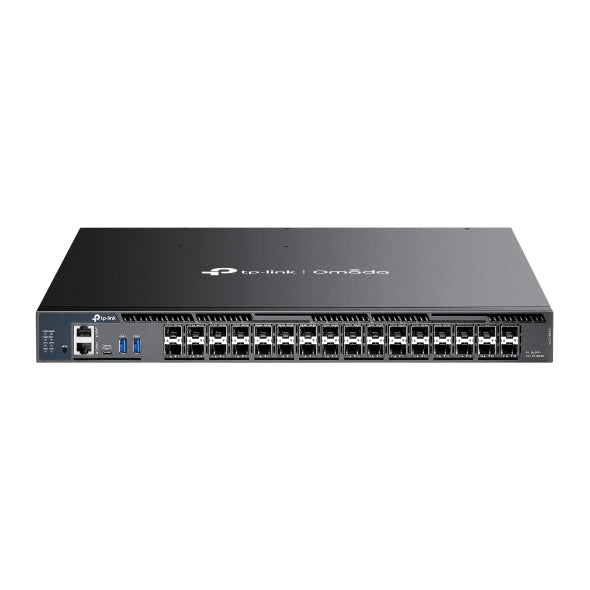

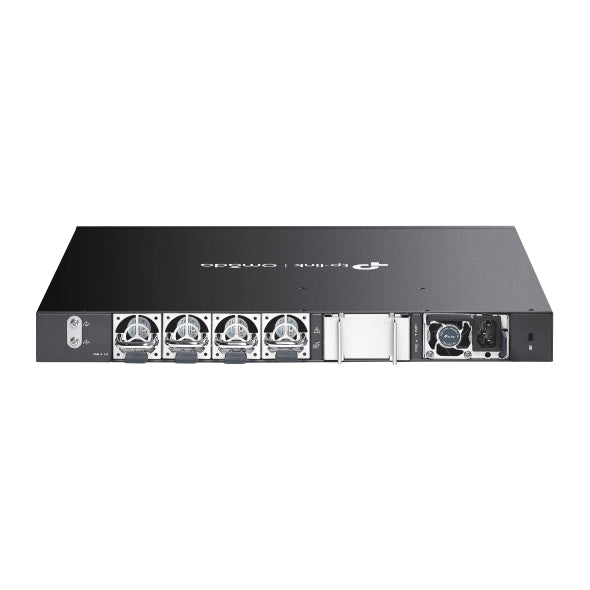

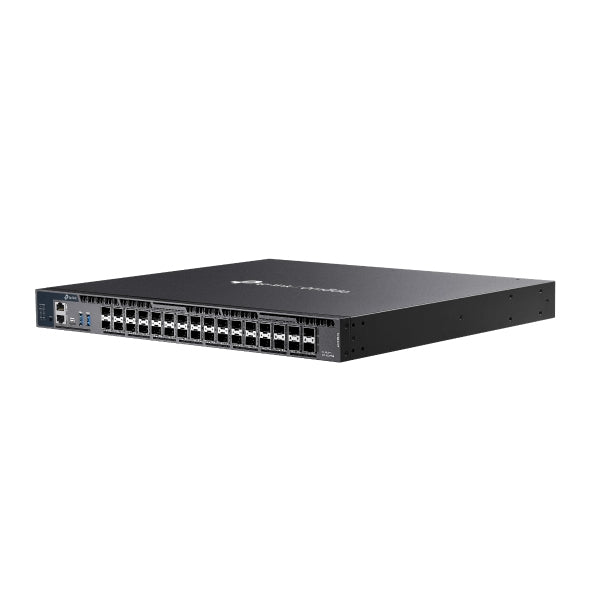

What This Product Does. The Omada SX6632YF is a true L3 managed switch with full fiber ports that offers L3 routing, swift 25 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 6× 25 Gbps SFP28 slots, 26× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks. High-speed Connectivity and Powerful Stacking. 6× 25 Gbps SFP28 slots and 26× 10 Gbps SFP+ slots provide up to 820 Gbps switching capacity per unit. Up to 8 units of physical stacking with up to 6560 Gbps switching capacity empowers the networking structure with built-in redundancy and performance. Abundant Layer 3 Capabilities. Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups. Highly Available. Internal fixed redundant power supplies* and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology. Enhanced Security Functions. Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell. Omada SDN. Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined...
Why choose the TP-Link Omada SX6632YF network switch Managed L2+/L3 Black?
The TP-Link Omada SX6632YF network switch Managed L2+/L3 Black is a network switches from TP-Link, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Switch type: Managed; Switch layer: L2+/L3; Quality of Service (QoS) support: Yes. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Switch type | Managed |
| Switch layer | L2+/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| SFP module slots quantity | 6 |
| SFP+ module slots quantity | 26 |
| USB Type-A ports quantity | 2 |
| USB Type-C ports quantity | 1 |
| Number of management ports | 1 pc(s) |
| Console port | RJ-45 |
| Networking standards | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah |
| 10G support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| Switching capacity | 820 Gbit/s |
| Forwarding rate | 610.1 Mpps |
| MAC address table | 128000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 8 MB |
| DHCP features | DHCP Option 82 |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Multicast support | Yes |
| Management protocols | SNMPv1/v2c/v3 |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| Number of fans | 4 fan(s) |
| Minimum system requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux. |
| Power source | AC |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Brand | TP-Link |
| Manufacturer part number | SX6632YF |
| GTIN / UPC | ['4895252501315', '4895252501322', '0840030705816', '840030705816'] |
