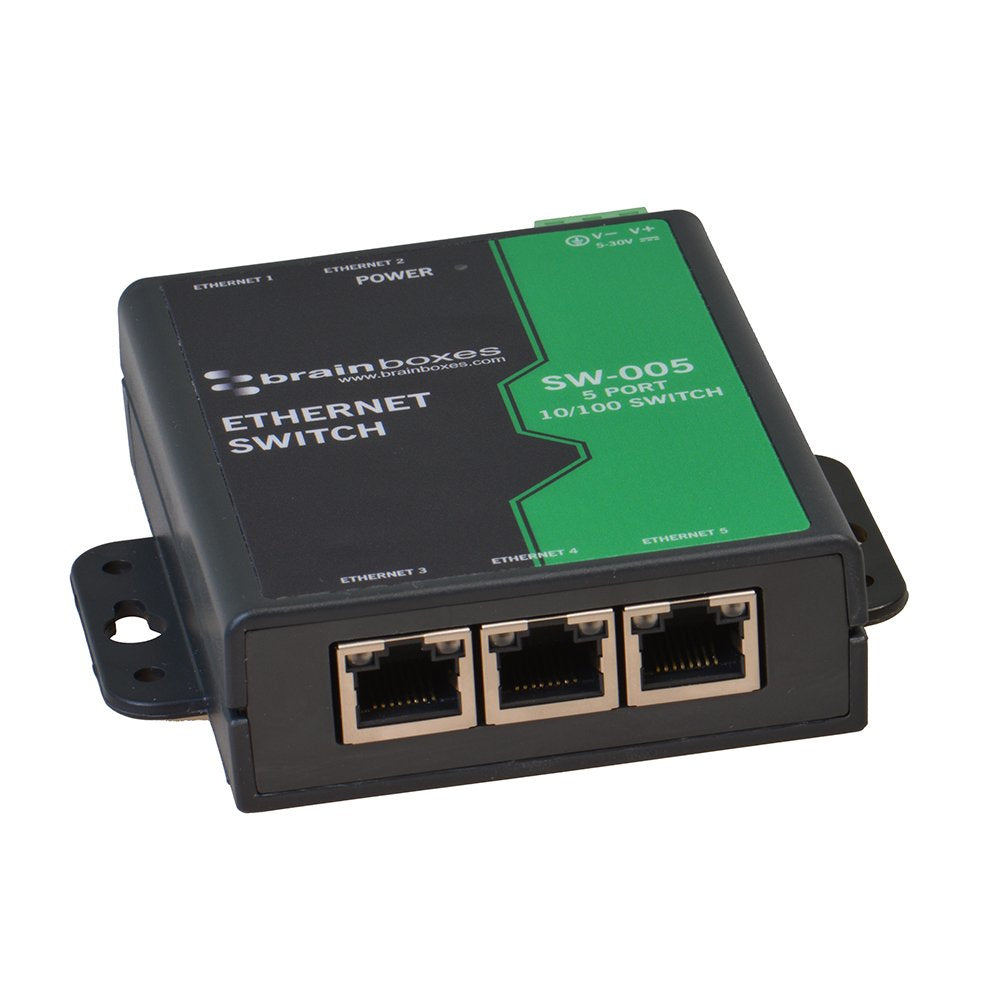

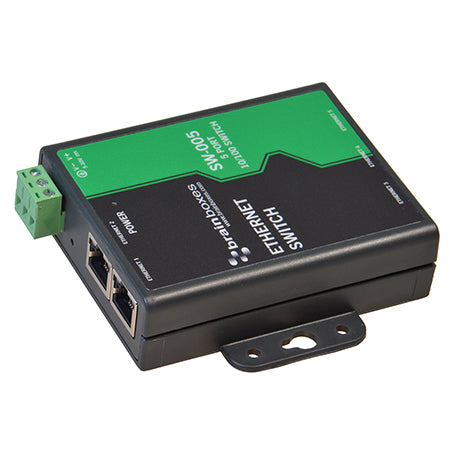

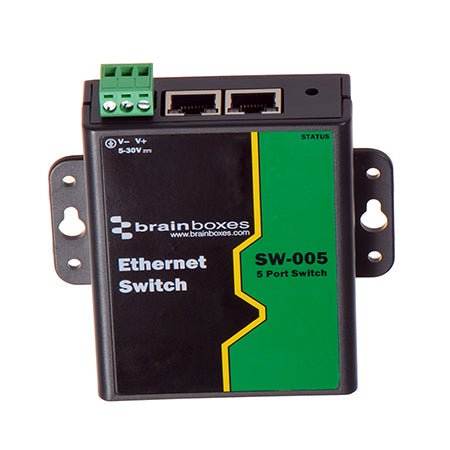

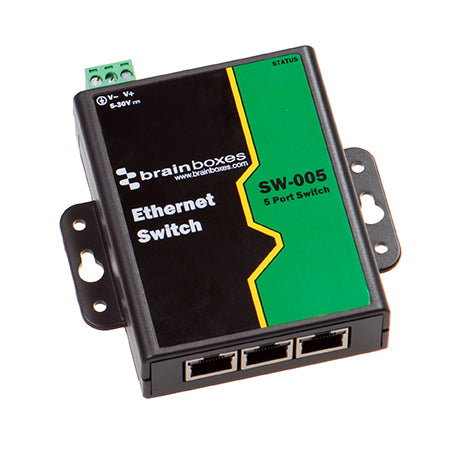

Commutateur Ethernet non manageable

Name: Commutateur Ethernet non manageable
Brand: BRAINBOXES
SKU: SW-005
Price: 61.63 CAD
Availability: OutOfStock

BRAINBOXES | SKU : SW-005

Fast 24 to 72 hour delivery across Canada Get it between Fri 07 and Tue 11 Aug

Stock: 0 units

List price: $77.04 | You save: -$0.00

Volume discount when you add 3+ units

$61.63 1 – 2 units

$61.01 3 – 5 units

$60.39 6 – 10 units

Best price

$59.78 11+ units

AI assistant for technical questions about office products

Ask any technical question about this product

Ask the genie a question

FullOffice AI Technical Assistant Technical product consulting FullOffice.com

Télécharger la fiche technique (PDF)

Description

Product overview

Light Industrial/Commercial Ethernet 5 Port unmanaged switch. Galvanically Isolated Ports. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications. Wall mountable using mounting screw holes, optional DIN Rail mount accessory available (see MK-048). No software needed: Simply plug in any ethernet cable. All Ethernet ports are Auto MDI/MDIX supporting straight through or crossover Ethernet cables. Automatic detection of data transmission speed: 10 or 100 MBps 2k Byte maximum packet size – improves the efficiency of bulk data transfer and system performance. Easy Wire Removable screw terminal block. Wide Range Input Power: +5VDC to +30VDC. Power consumption is optimised based on the status of the link device. Wall mount holes compatible with MK-048 DIN mount clips. IP30 Non-conducting polyamide case 0ºC to +60ºC/+32ºF to +140ºF temperature range

Why choose the Brainboxes SW-005 network switch Unmanaged Fast Ethernet...?

The Brainboxes SW-005 network switch Unmanaged Fast Ethernet (10/100)... is a network switches from Brainboxes, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Switch type: Unmanaged; Basic switching RJ-45 Ethernet ports quantity: 5; Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100). Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.

Highlights

5 Port Ethernet Switch

Wide Power Input: +5V to +30V DC

Wall Mountable, or DIN rail mountable with optional accessory

No software required

Lifetime Support and Lifetime Warranty

Key benefits

✔ Verified manufacturer specifications — no guesswork before you buy
✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
✔ Volume pricing available for business and reseller accounts
✔ Support by phone, WhatsApp or email before and after your purchase

Recommended use cases

Structured cabling and network closets
Data centre and server room links
Branch office connectivity
Campus and building-to-building runs

Recommended industries

IT & MSPEducationHealthcareGovernmentManufacturing

Specifications

Specification	Detail
Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power connector	Terminal block (3-pin)
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Product colour	Black, Green
Housing material	Polyamide
LED indicators	Activity, Link, Speed
International Protection (IP) code	IP30
Wall mountable	Yes
DC input voltage	5 - 30 V
Power consumption (max)	1.1 W
Power consumption note	1.1W Max: 220mA @+5VDC / 36mA @+30VDC
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-30 - 80 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Width	107 mm
Depth	102 mm
Height	28 mm
Weight	137 g
Package width	160 mm
Package depth	135 mm
Package height	49 mm
Package weight	221 g
Certification	CE, WEEE, RoHS, AEO
Brand	Brainboxes
Manufacturer part number	SW-005
GTIN / UPC	['0837324009866', '837324009866', '0804067336726', '804067336726']
