ATEN VM0808HB video switch HDMI
Stock: 0 units
Description
Description
Product overview

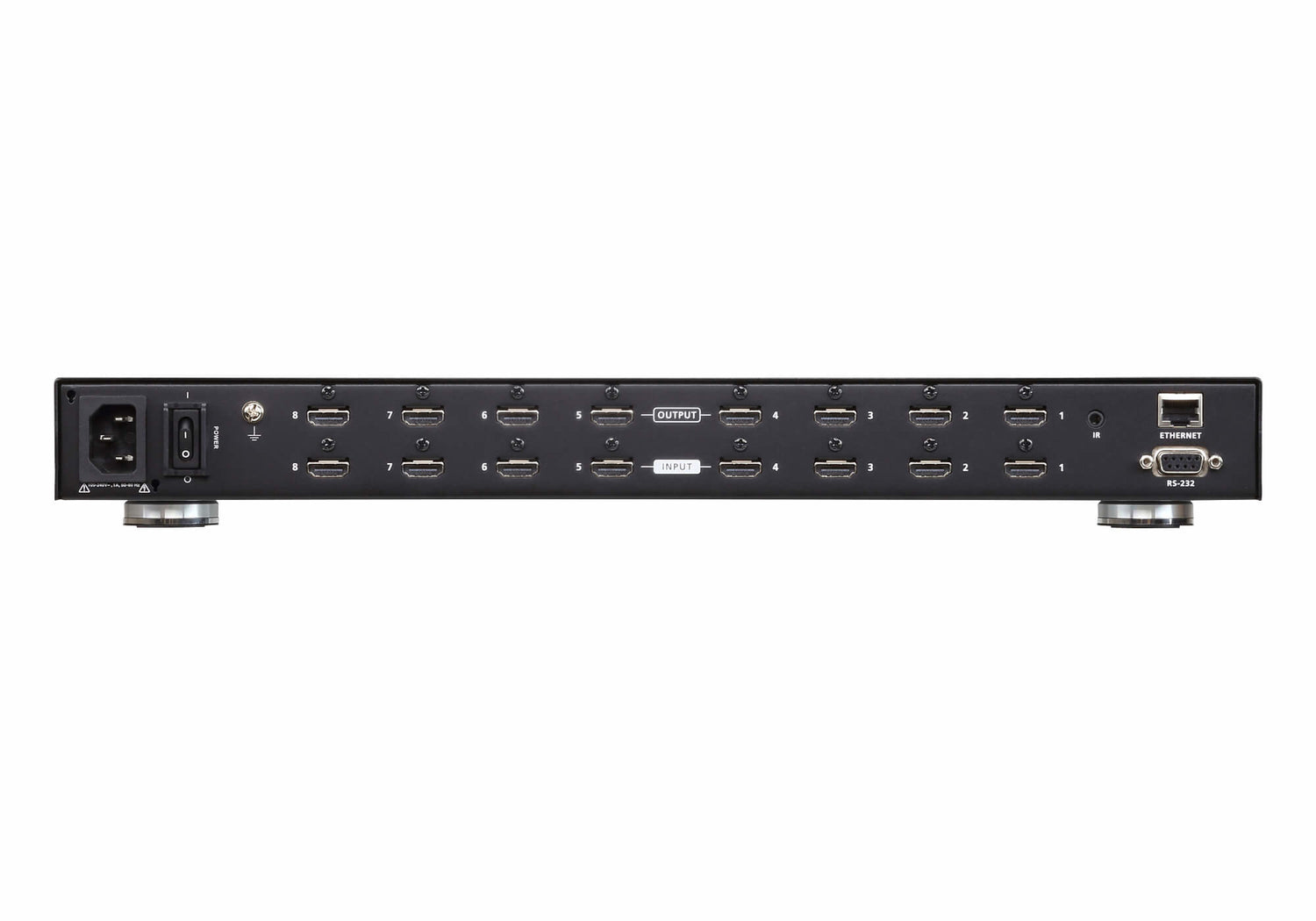

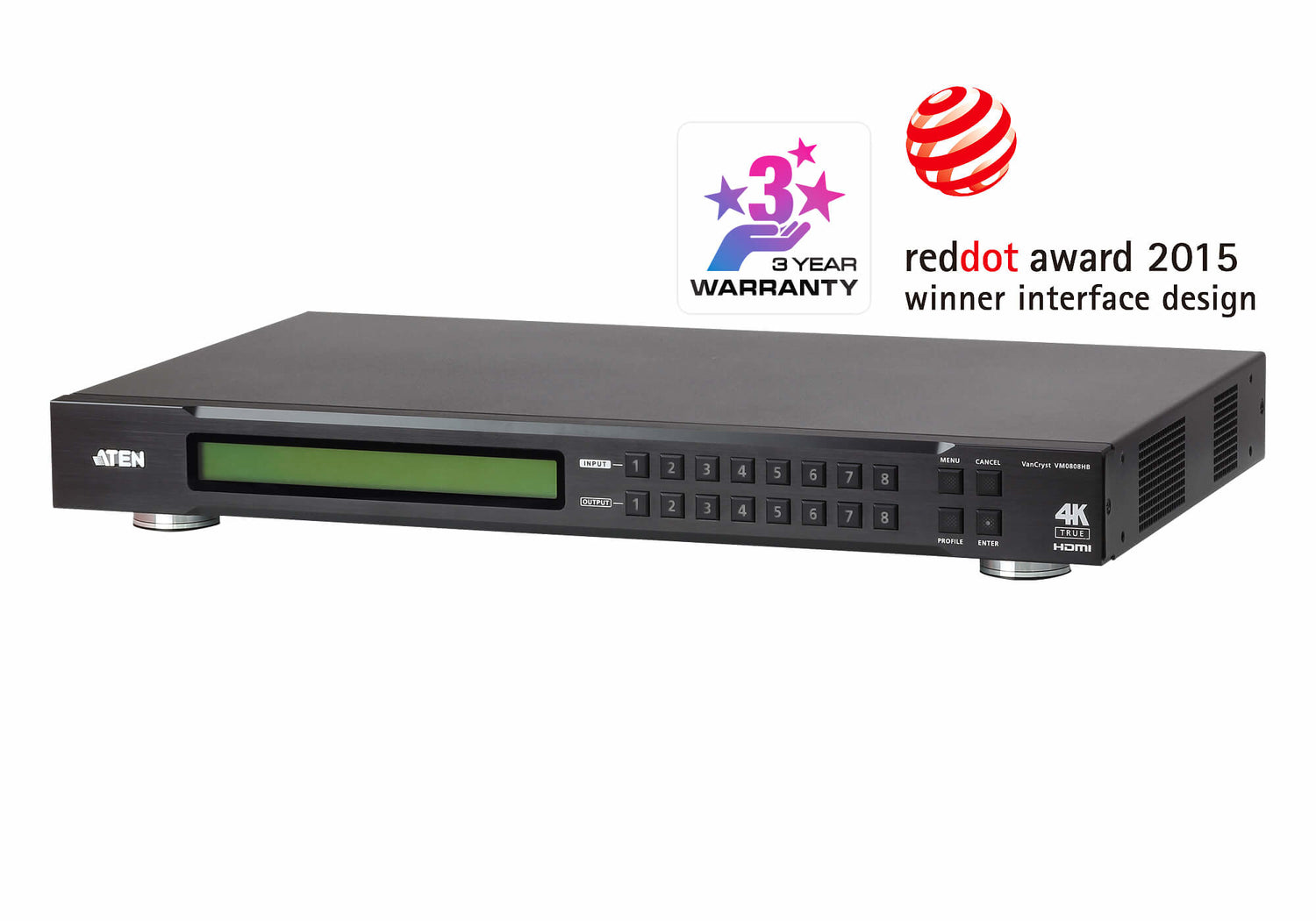

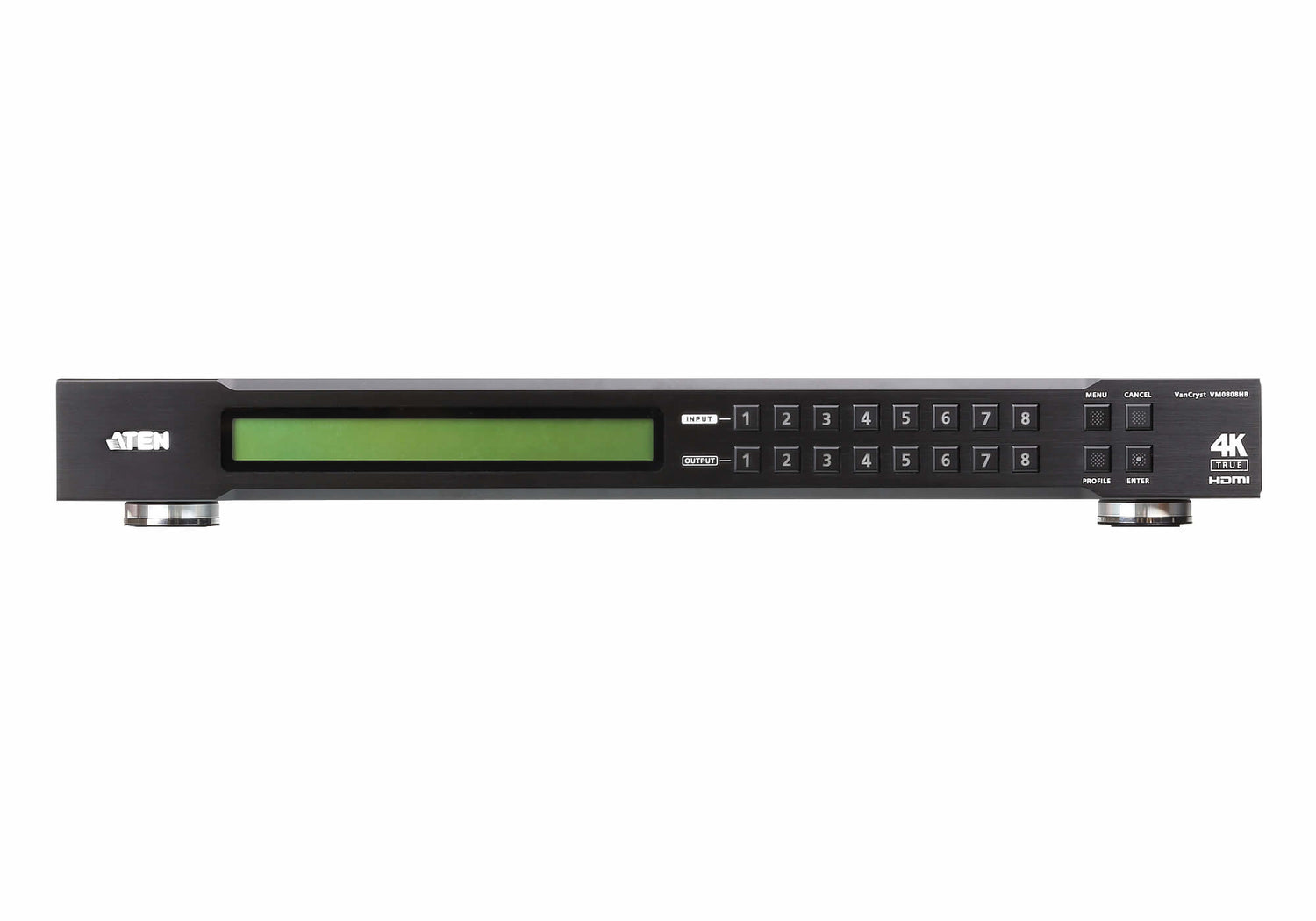

ATEN’s VM0808HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0808HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more. The intuitive GUI design of the VM0808HB allows users to flexibly configure any input to output connections, eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI, the VM0808HB can be operated through front-panel pushbuttons, IR remote, RS-232 control, and Telnet via Ethernet connections, giving users the ultimate convenience while keeping the system available with performance video switching anytime.
Why choose the ATEN VM0808HB video switch HDMI?
The ATEN VM0808HB video switch HDMI is a video switches from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Video port type: HDMI; HDMI in: 8; Number of HDMI outputs: 8. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Video port type | HDMI |
| HDMI in | 8 |
| Number of HDMI outputs | 8 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
| Material | Metal |
| Product colour | Black |
| HDCP | Yes |
| Maximum operating distance | 15 m |
| Bandwidth | 600 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| 3D | Yes |
| HD type | 4K Ultra HD |
| Rack capacity | 1U |
| Input impedance | 100 Ω |
| Output impedance | 100 Ω |
| AC adapter input voltage | 100-240 V |
| AC adapter frequency | 50-60 Hz |
| AC adapter input current | 1 A |
| Width | 432.4 mm |
| Depth | 262.3 mm |
| Height | 44 mm |
| Weight | 3.99 kg |
| Remote control included | Yes |
| User guide | Yes |
| Cables included | AC |
| Mounting brackets included | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Harmonized System (HS) code | 85176990 |
| Brand | ATEN |
| Manufacturer part number | VM0808HB |
| GTIN / UPC | ['0672792008795', '672792008795'] |
