Support mural - Acier - Noir - Système de fixation rapide sans outil pour une installation facile par une seule personne

Product overview

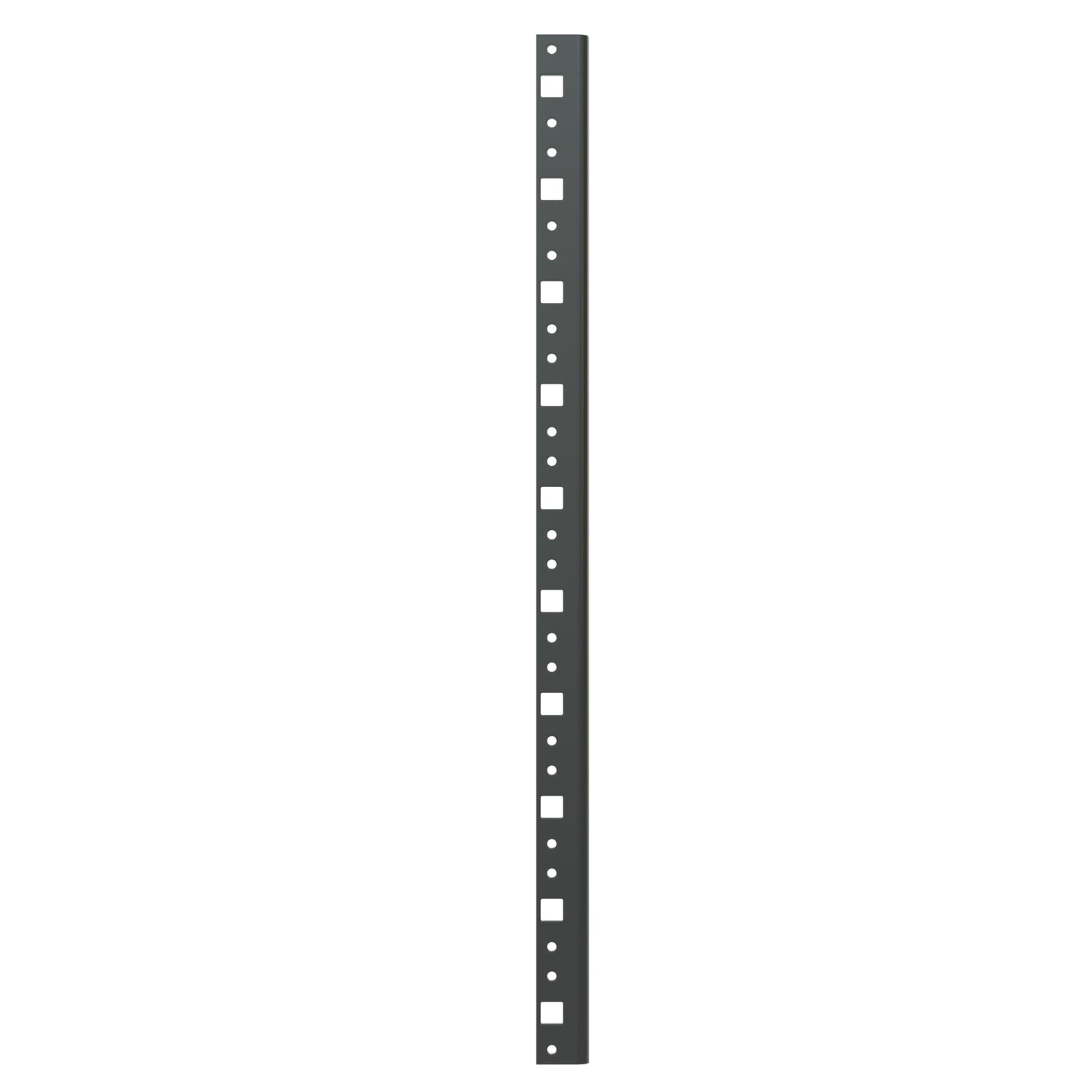

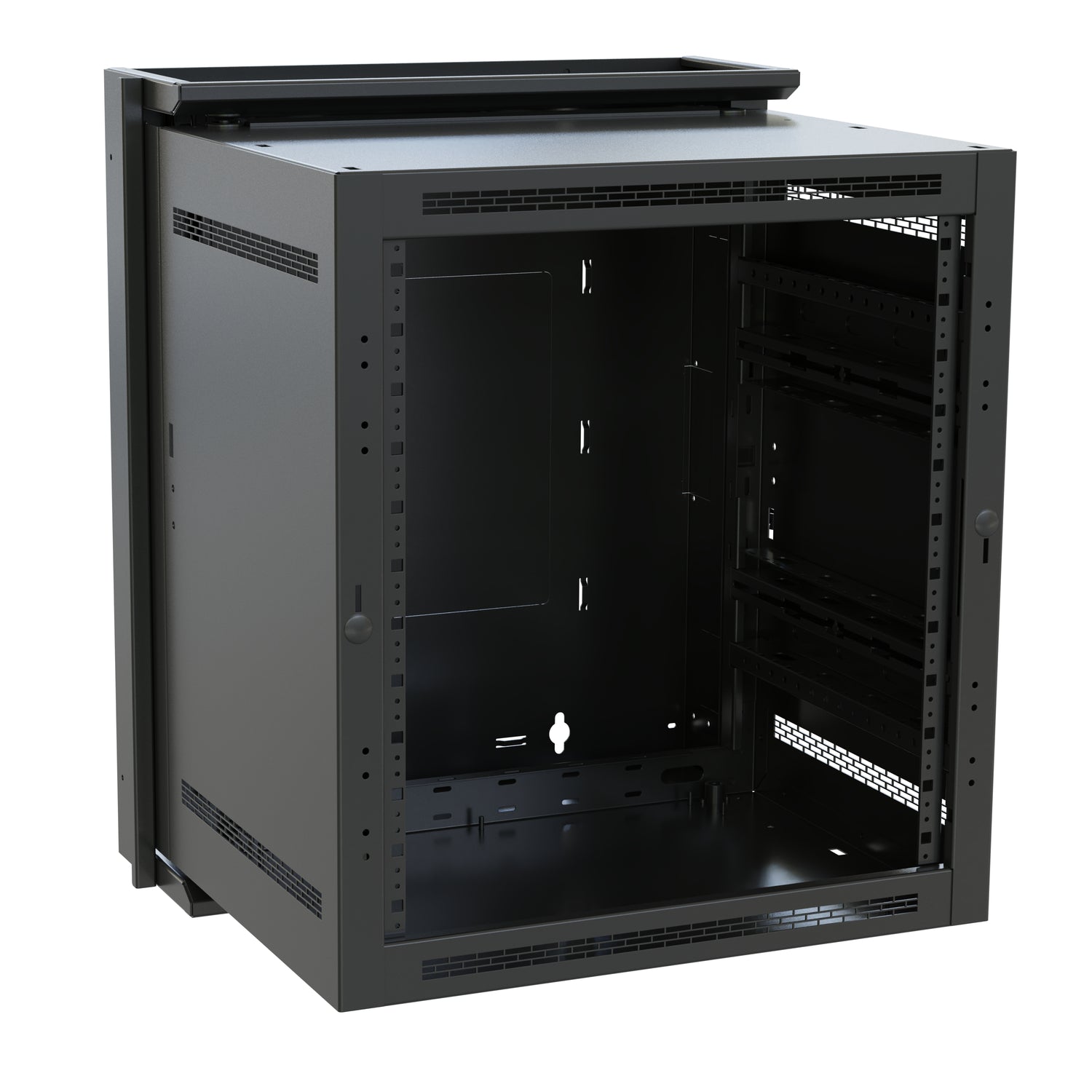

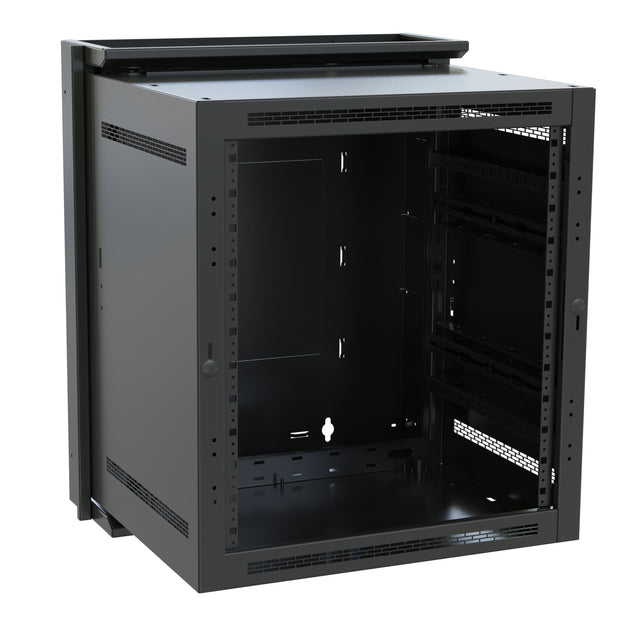

EIA compliant 19” wall mount rack shall be Middle Atlantic Products model # DWR-12-17. Overall dimensions shall be 23.4" W x 28" H x 17.3" D. Weight capacity shall be 200 lbs. Tool-Free Quick-Mount™ system enables one-person installation. Useable depth shall be 15” and shall extend into the back pan 3.5”. Center section and back pan shall be 16-gauge steel, phosphate pre-treated and finished in a black textured powder coat. Rackrail shall be constructed of 11-gauge steel with tapped 10-32 mounting holes in universal EIA spacing with black e-coat finish and marked rackspaces. Rack shall be constructed to swing open for component cabling access, center section shall pivot for either left or right opening. Rack shall have a rear knockout panel with 1/2”, 3/4”, 1", 1-1/2”, 2” and 3” electrical knockouts installed in base, and a rear knockout panel with 1/2”, 3/4”, 1”, 1-1/2”, 2” and 3” electrical knockouts, four Decora® cutouts, and BNC knockouts for UHF/VHF antennas installed in top. Large laser knockout on back pan shall have a 12-1/2” x 12-1/2” cutout for electrical pull-box. Fan knockouts on top and bottom shall allow for installation of up to four 4-1/2" fans. Rack shall have 2” knockouts, 4” knockouts for Wiremold 4000® Series raceways, and knockouts for UCP Series universal connector panels on the side. Top, bottom and sides shall feature vertical vent pattern. DWR Series enclosures shall satisfy the 2007 & 2010 CBC; 2006, 2009 & 2012 IBC; ASCE 7-05 (2005 Edition) & ASCE 7-10 (2010 Edition) and the 2006 & 2009 editions of NFPA 5000 for use in areas of high seismicity...

Why choose the Middle Atlantic DWR Series Pivoting Wall Rack - DWR-12-17?

The Middle Atlantic DWR Series Pivoting Wall Rack - DWR-12-17 is a rack cabinets from Middle Atlantic, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Rack capacity: 12U; Type: Wall mounted rack; Maximum weight capacity: 91 kg. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.

Highlights

Key benefits

• ✔ Verified manufacturer specifications — no guesswork before you buy
• ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
• ✔ Volume pricing available for business and reseller accounts
• ✔ Support by phone, WhatsApp or email before and after your purchase

Recommended use cases

• Conference and boardroom installs
• Classroom and training rooms
• Retail and hospitality displays
• Workstation ergonomics programs

Recommended industries

Specifications

Frequently asked questions

How long does delivery take?

Orders are processed within 24 hours. Once your tracking number is issued, delivery takes 24 to 72 hours to major centres in the main provinces, and 3 to 8 business days to remote regions. We ship with FedEx, DHL, UPS, Canada Post and Purolator.

Is this product covered by a warranty?

Yes. This item carries the manufacturer's warranty. See our Refund Policy for return windows and conditions, or contact us and we will walk you through the process.

Can I get volume pricing?

Yes. Volume discounts apply automatically as quantity increases, and our team can quote larger projects directly — reach us by phone, WhatsApp or email.

Do the specifications on this page come from the manufacturer?

They do. Product data on this page is sourced from the manufacturer's own catalogue, not rewritten from a distributor summary.
